RX1330 M1 Upgrade and Maintenance Manual 101
Power supply

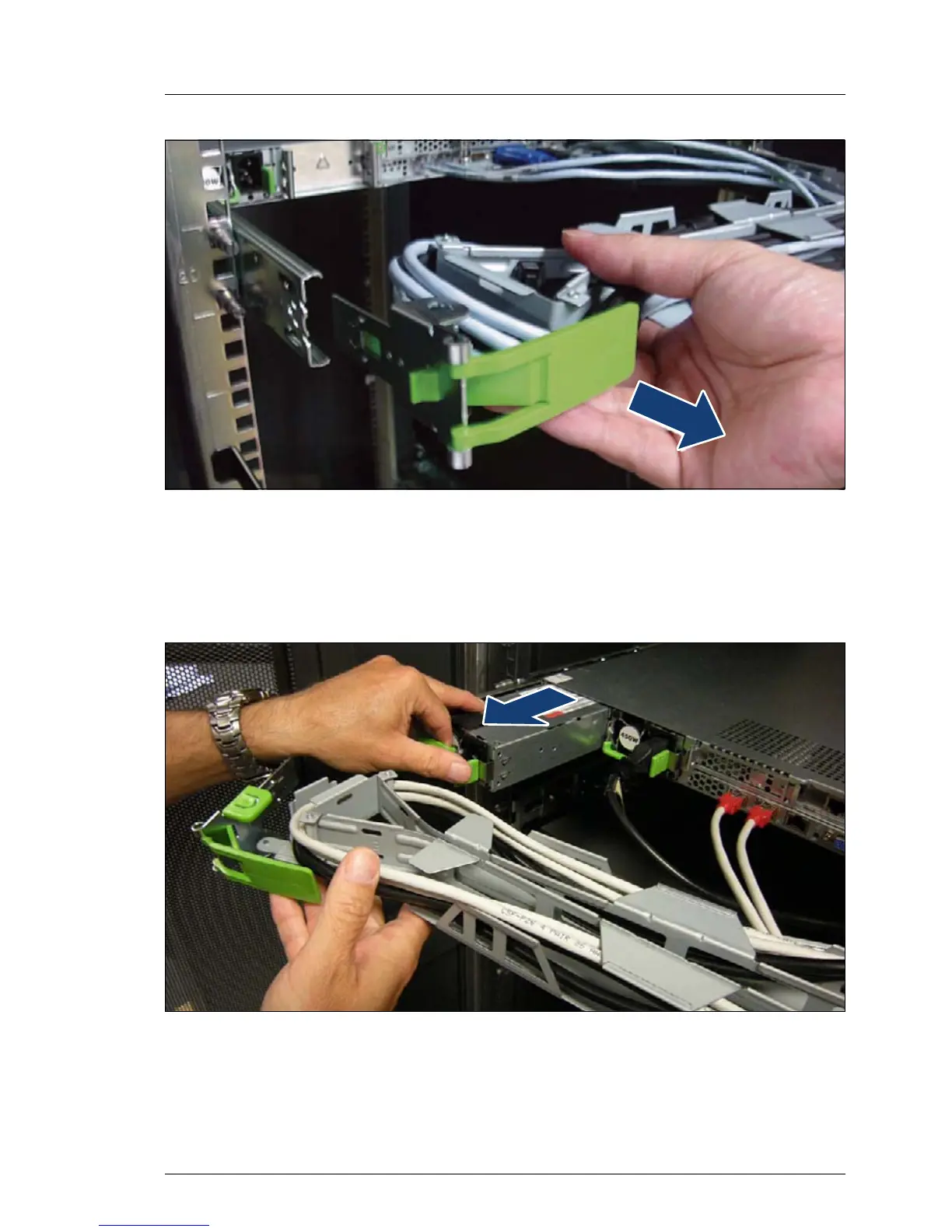

Figure 32: Removing the CMA stopper
Ê Remove the CMA stopper with the mounted crossbar.
Ê Hold the CMA stopper, the crossbar and the CMA including cables in the one
hand.
Figure 33: Removing the power supply unit
Ê Remove the power supply unit and install the dummy cover carefully.
Ê Mount the complete assembly (CMA stopper, the crossbar and the CMA)
again into the rail.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
