Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 267
System board and components
14.4.2.2 Removing the TPM
Ê "Removing the defective system board" on page 279
Ê Lay the system board on a soft, antistatic surface with its component side
facing down.

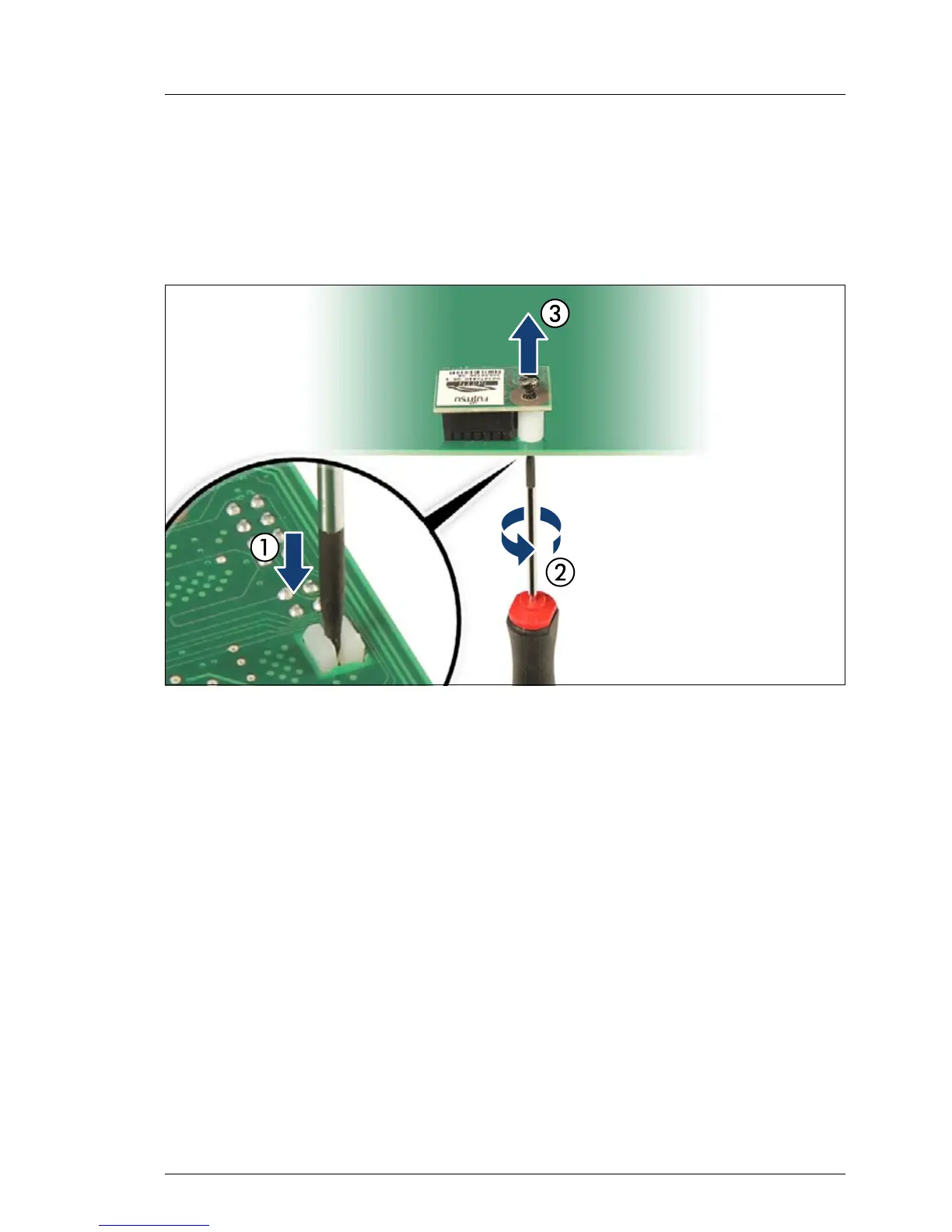

Figure 198: Removing the TPM screw
Ê Locate the slotted lower end of the TPM screw (1).
Ê Carefully loosen the TPM screw using a thin slotted screw driver (e.g.
watchmaker's screw driver) or the dedicated TPM screw driver (Japanese
market) (2).
V CAUTION!
Ensure to turn the screw clockwise in order to remove it!
Slowly and carefully increase the pressure on the screw until it begins
to turn. The effort when loosing the screw should be as low as
possible.
Otherwise the thin metal bar may break, rendering it impossible to
loosen the screw.
Ê Remove the TPM screw (3).
Ê Remove the TPM on the upper side of the system board.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
