Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 177
Expansion cards and backup units
9.4.4.3 Installing the new riser card

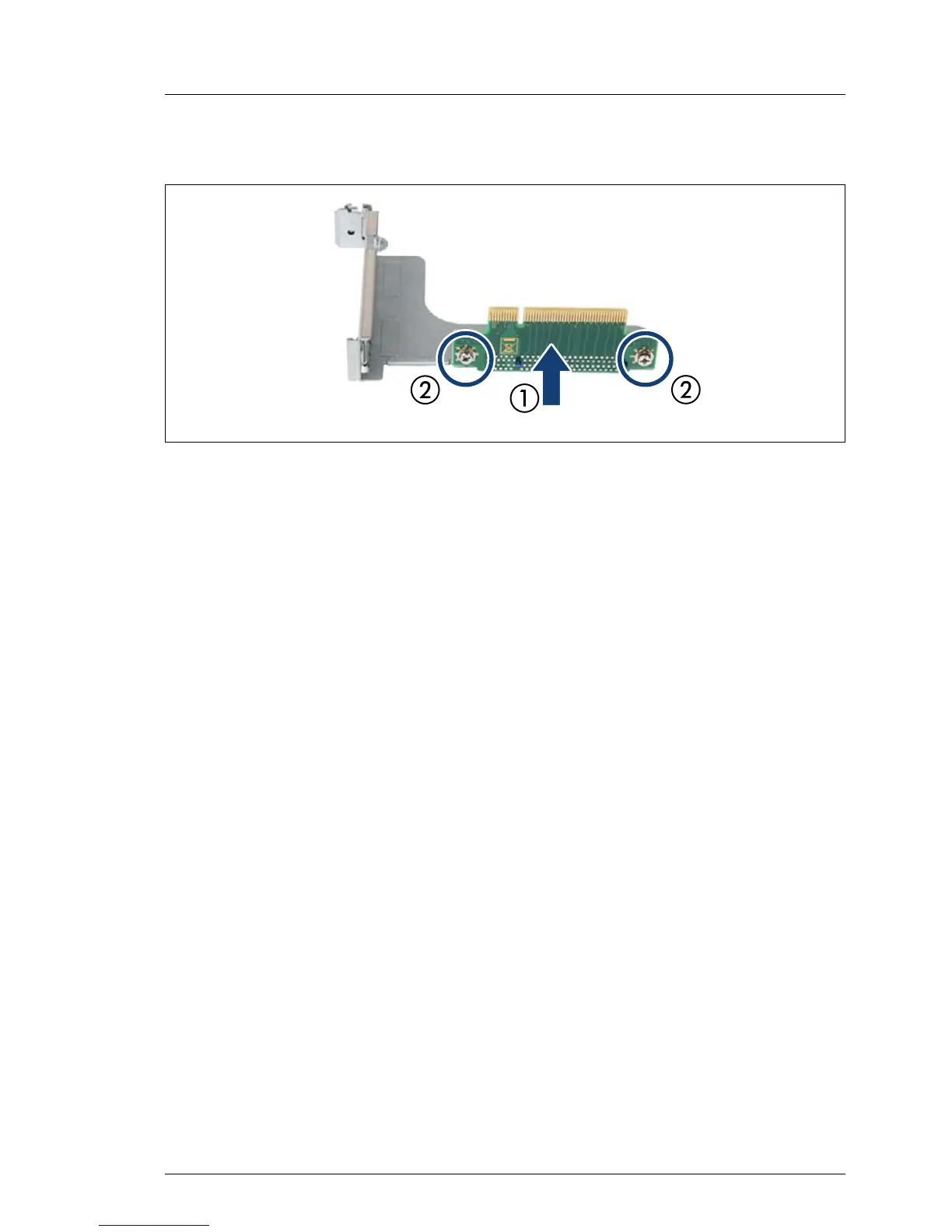

Figure 110: Installing the riser card - example riser module 1
Ê Insert the riser card (1).
Ê Fasten the riser card with two screws (2).
Ê Install the expansion card as described in section "Installing the expansion
card" on page 171.
9.4.4.4 Concluding steps
Ê Install the corresponding riser module as described in section "Handling
riser modules" on page 58.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
