Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

96 Upgrade and Maintenance Manual RX1330 M1
Power supply

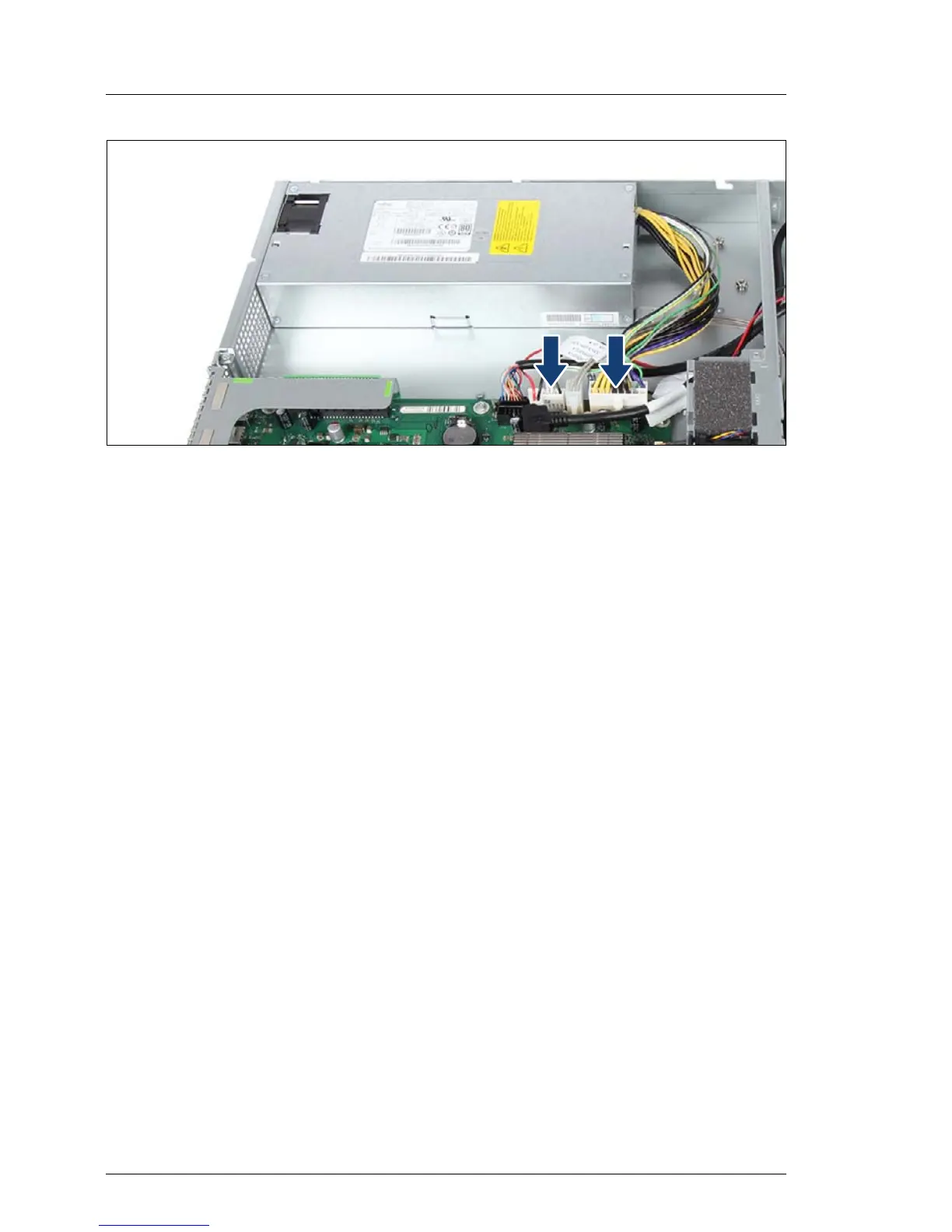

Figure 25: Connecting the power cables
Ê Connect the two power cables to the system board connectors "PC98" and
"PWR1".
6.2.1.4 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
Ê "Resuming BitLocker functionality" on page 84
Ê "Performing a fan test after replacing a defective fan" on page 89
V CAUTION!
(Except for Japanese market) After replacing the power supply unit a fan
calibration must be started for the PSU fan. You will find the description
for this procedure in the manual "ServerStart".

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
