16.1.2 Server rear

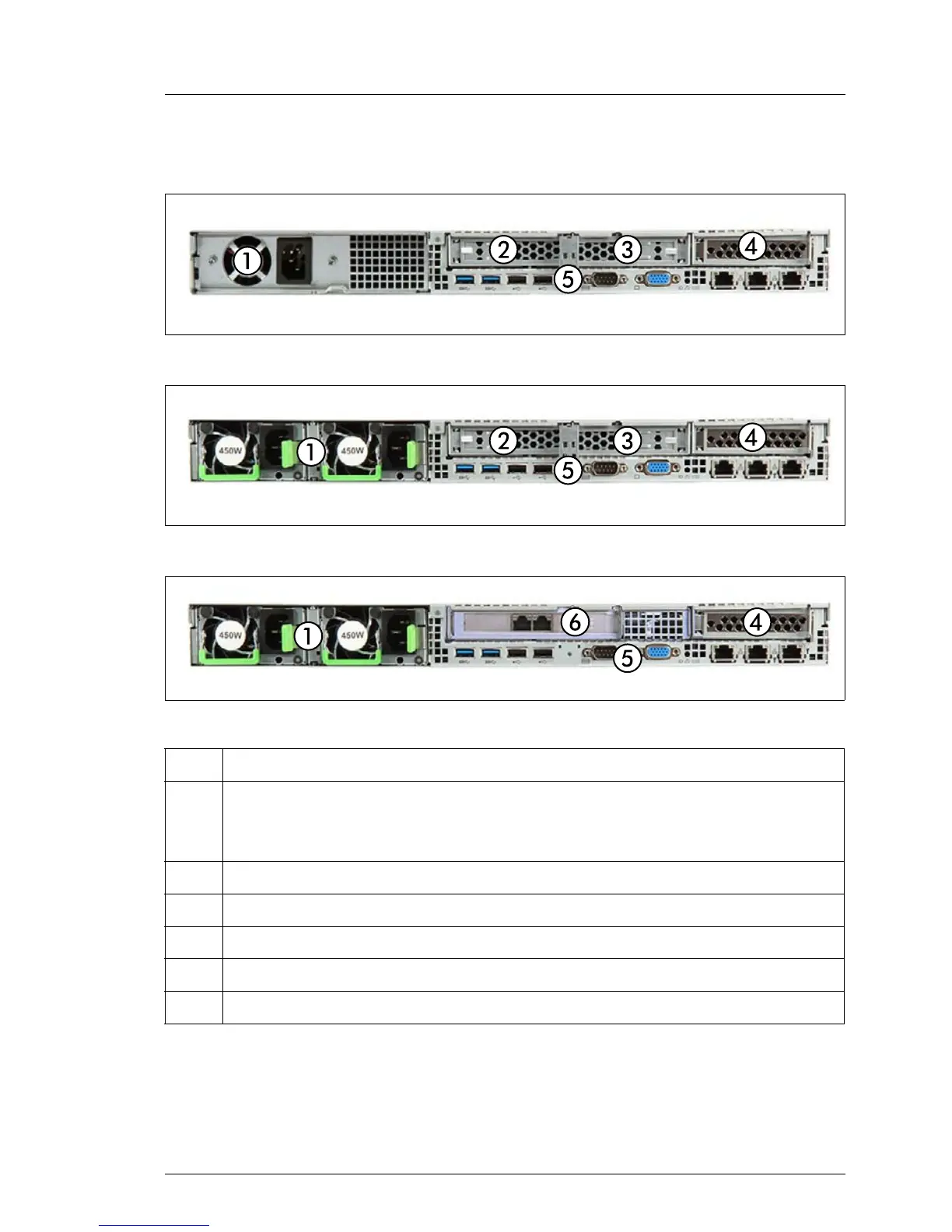

Figure 219: Rear side (standard power supply)
Figure 220: Rear side (redundant power supply)
Figure 221: Rear side (redundant power supply and full height riser module)
Pos. Component
1 Standard power supply: one power supply unit
Redundant power supply: up to 2 hot-plug power supply units / dummy
cover
2 PCI slot 3 / riser module 3
3 PCI slot 2 / riser module 2
4 PCI slot 1 / riser module 1
5 I/O panel
6 PCI slot 3 / full height riser module
