Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

260 Upgrade and Maintenance Manual RX1330 M1
System board and components
14.3.3.3 Installing the new UFM

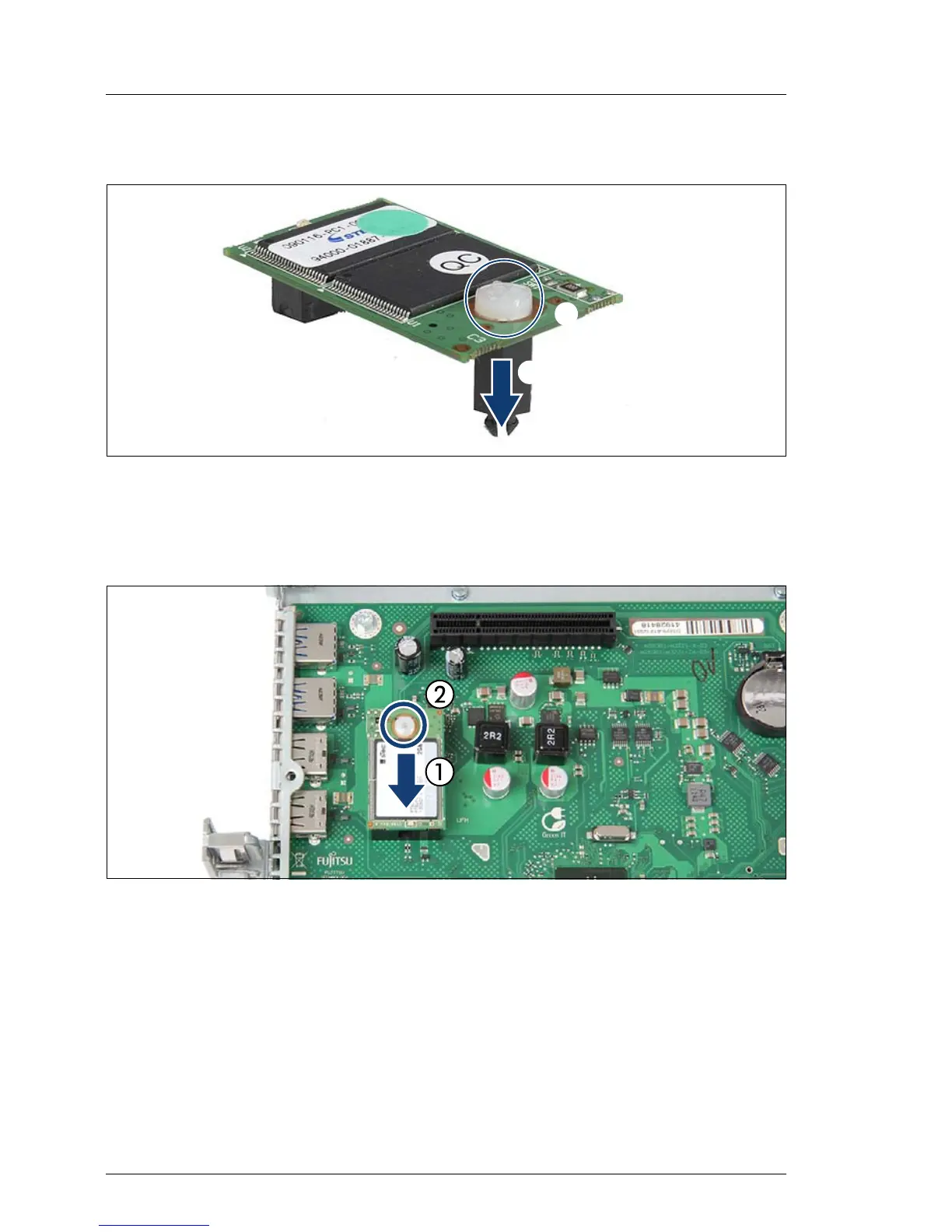

Figure 191: Removing the UFM spacer
Ê Remove the nylon screw from the UFM (1).
Ê Remove the UFM spacer (2).
Figure 192: Installing the UFM
Ê Connect the UFM to the system board and the remaining UFM spacer (1).
Ê Fasten the UFM to the UFM spacer with the nylon screw (2).
14.3.3.4 Concluding steps
Ê Install the riser module 3 as described in section "Installing a riser module"
on page 60.
Ê "Reassembling" on page 52
/
