RX1330 M1

Upgrade and Maintenance Manual 247

Front panel

13.4.1.2 Removing the front panel on QRL

I The front panel on QRL and the front panel cable are combined in one

spare part.

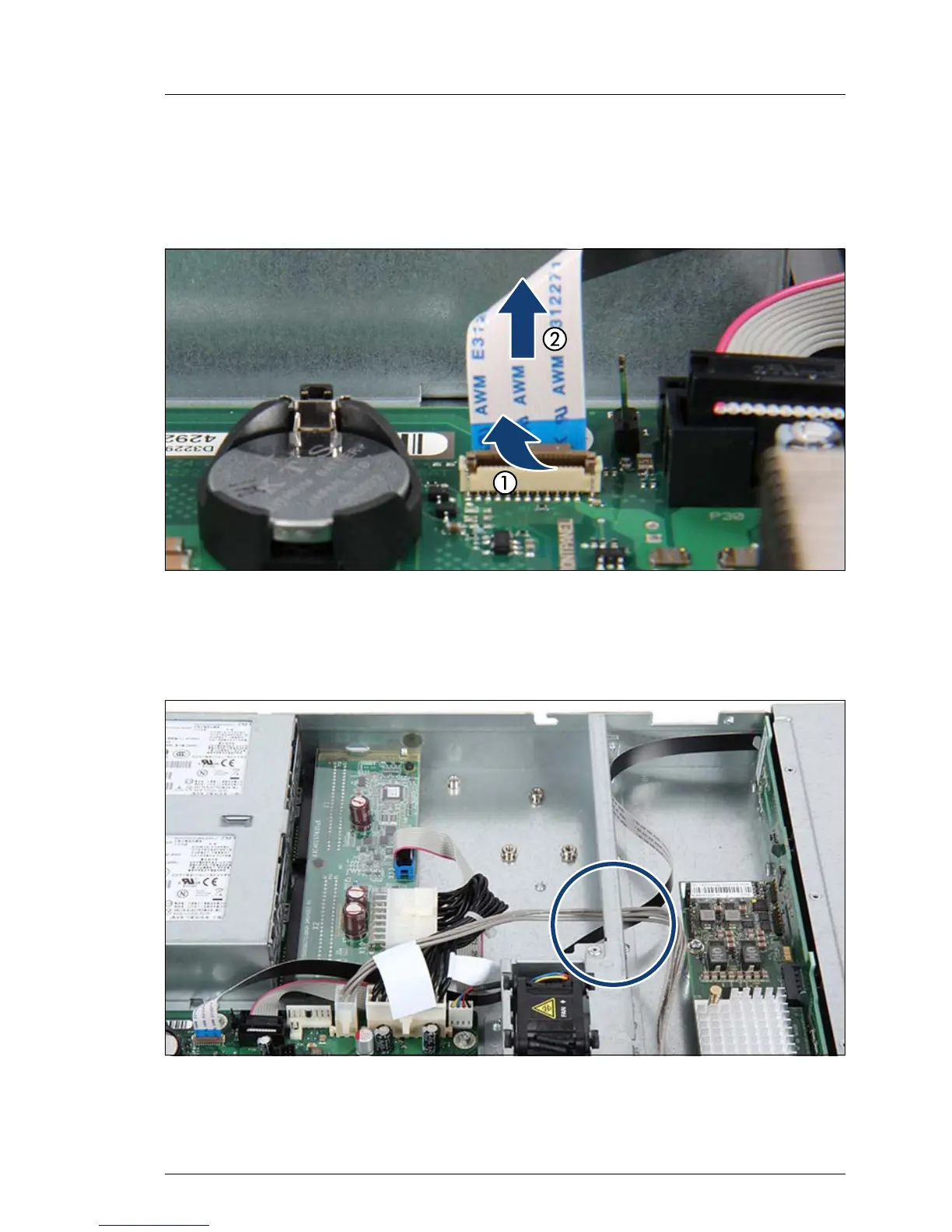

Figure 176: Disconnecting the front panel cable

Ê Pull up the locking bar (1).

Ê Remove the front panel cable (2).

Figure 177: Disconnecting the front panel cable (B)

Ê Thread the front panel cable through the opening (see circle).
