RX1330 M1
Upgrade and Maintenance Manual 249
Front panel
13.4.1.3 Installing the front panel on QRL

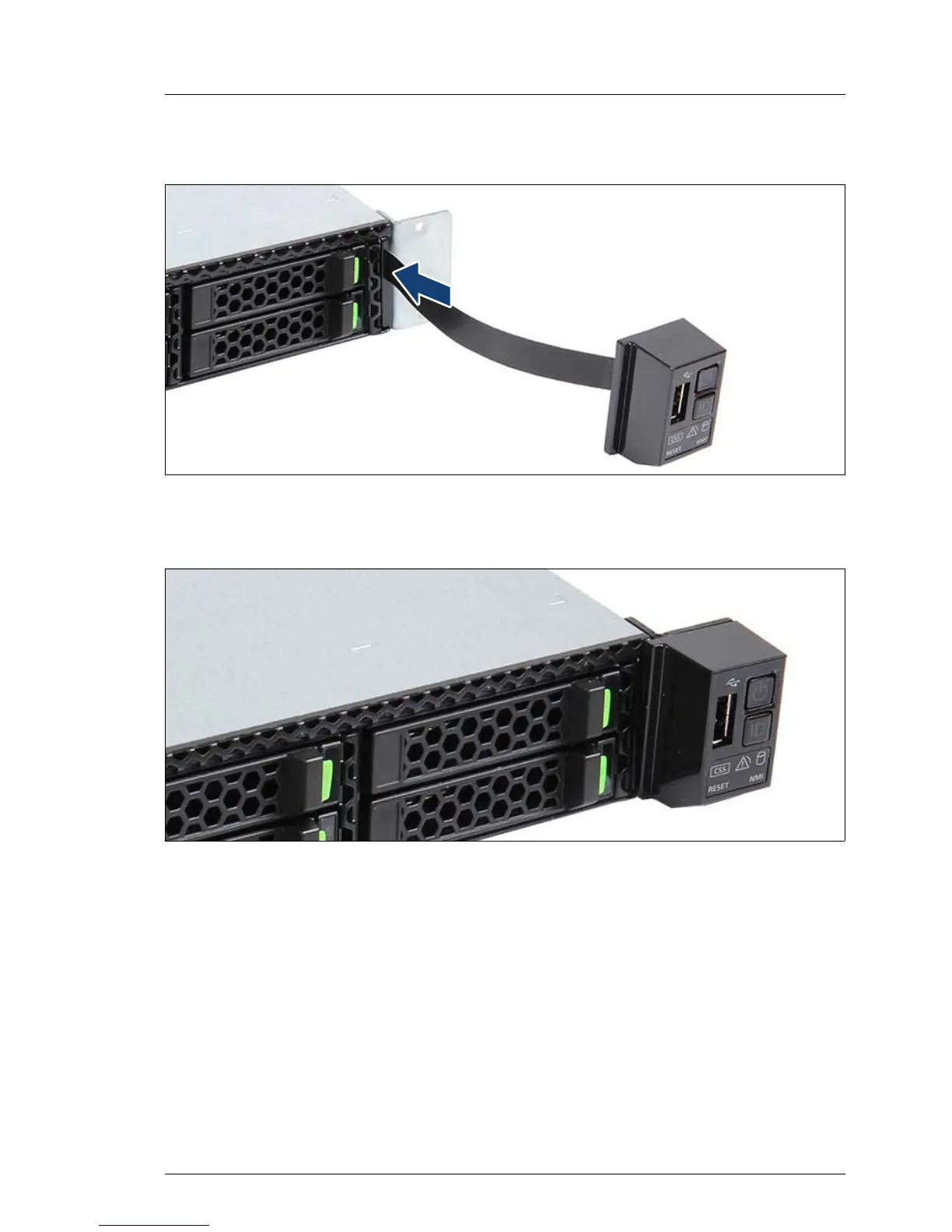

Figure 180: Installing the front panel (A)
Ê Thread the front panel cable through the opening.
Figure 181: Installing the front panel (B)
Ê Position the front panel on the ear.
Ê Fasten the front panel with two screws (see figure 178).
