Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

106 Upgrade and Maintenance Manual RX1330 M1
Power supply
6.3.4.2 Removing the defective power distribution board
Ê Remove all power supply units as described in section "Removing a hot-plug
power supply unit" on page 102.

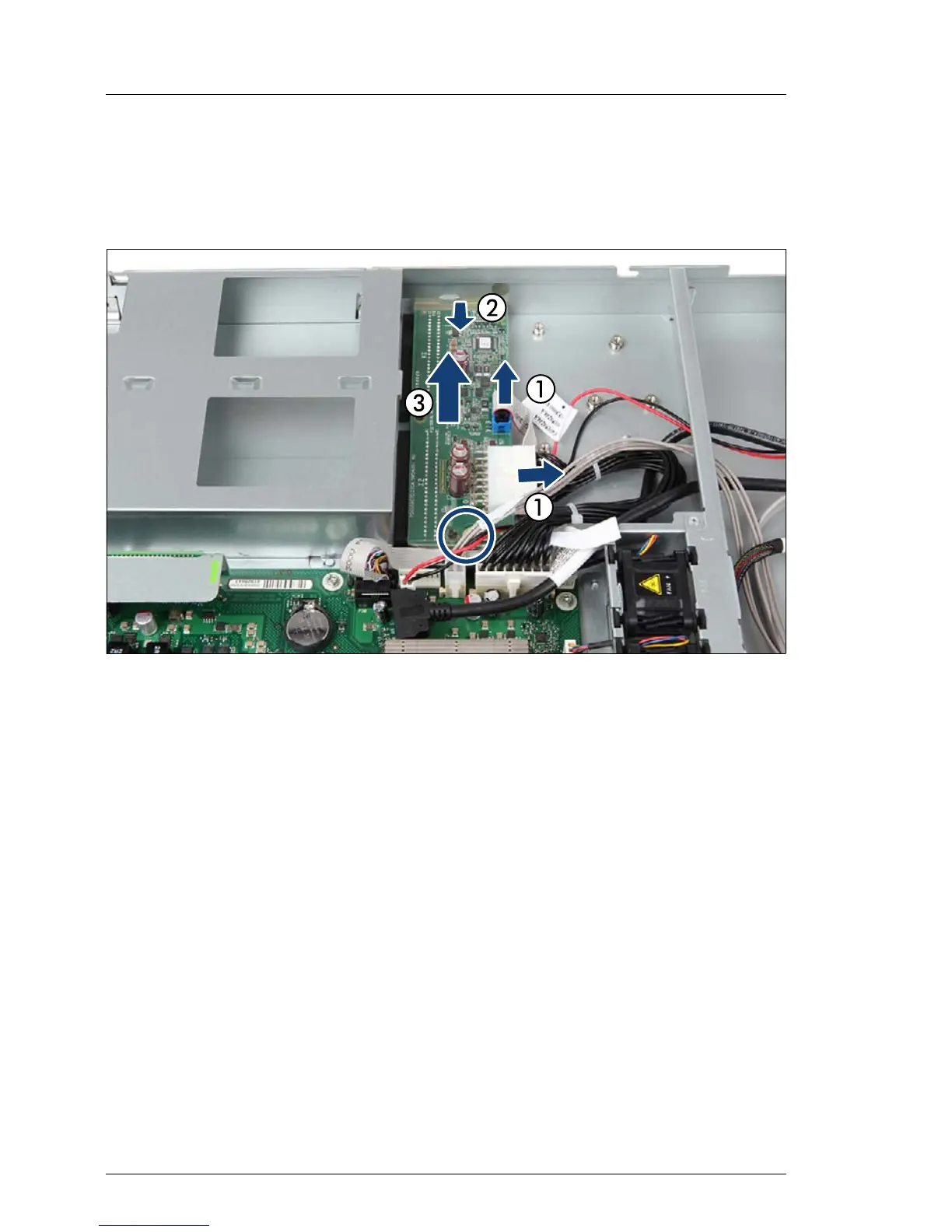

Figure 36: Removing the power distribution board
Ê Disconnect the two power cables from the power distribution board (1).
Ê Remove the screw (see circle).
Ê Slide the power distribution board out of the guidings of the chassis (2) and
take it out upward (3).

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
