Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

142 Upgrade and Maintenance Manual RX1330 M1
Hard disk drives / solid state drives
7.3.2 Installing 3.5-inch HDD modules
7.3.2.1 Preliminary steps
Ê Locate the correct drive bay as described in section "3.5-inch HDD
configurations" on page 141.
7.3.2.2 Removing a 3.5-inch HDD dummy module

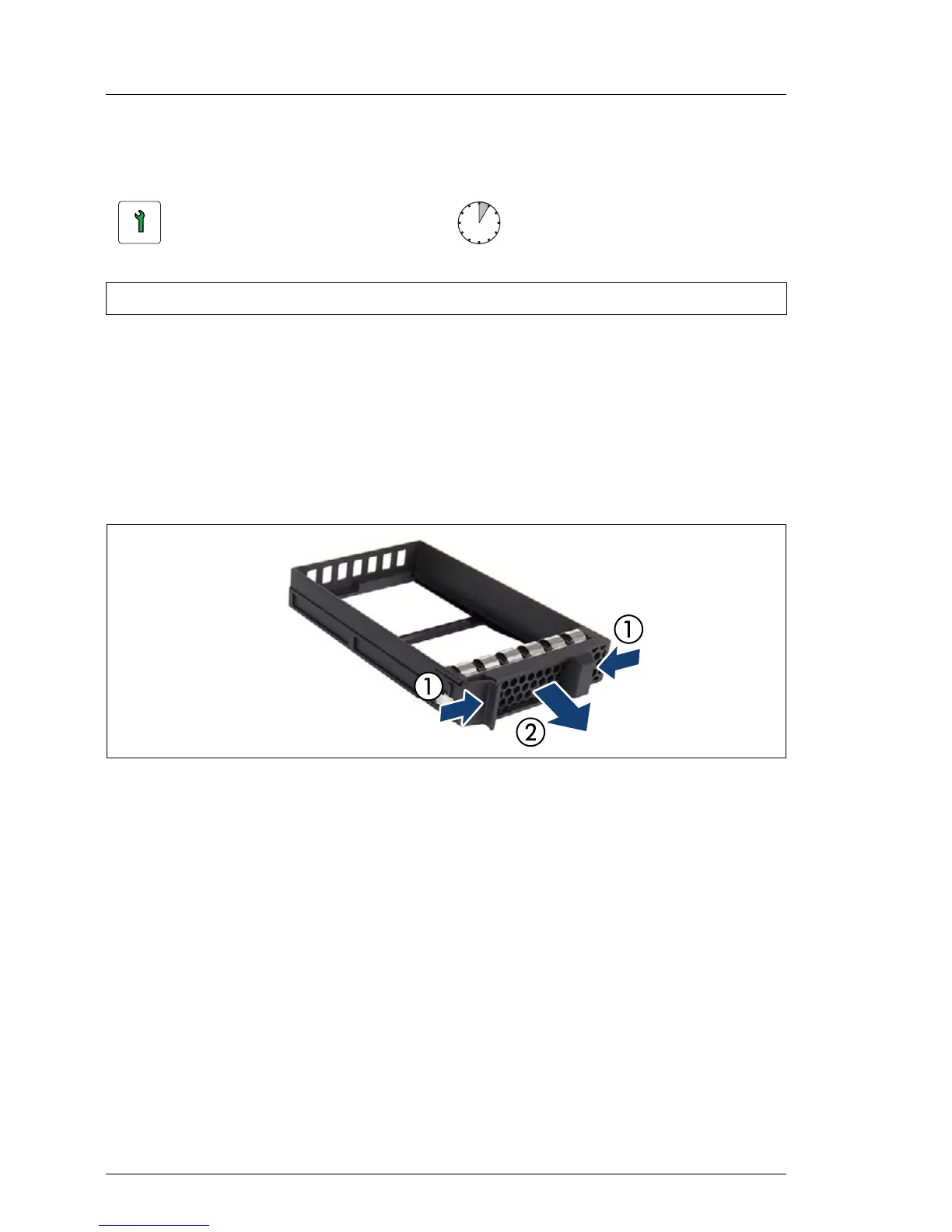

Figure 78: Removing a 3.5-inch dummy module
Ê Press both tabs together (1) and pull the dummy module out of its bay (2).
V CAUTION!
Save the dummy module for future use.
Always replace dummy modules into unused HDD bays to comply with
applicable EMC regulations and satisfy cooling requirements.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
