Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

114 Upgrade and Maintenance Manual RX1330 M1
Power supply

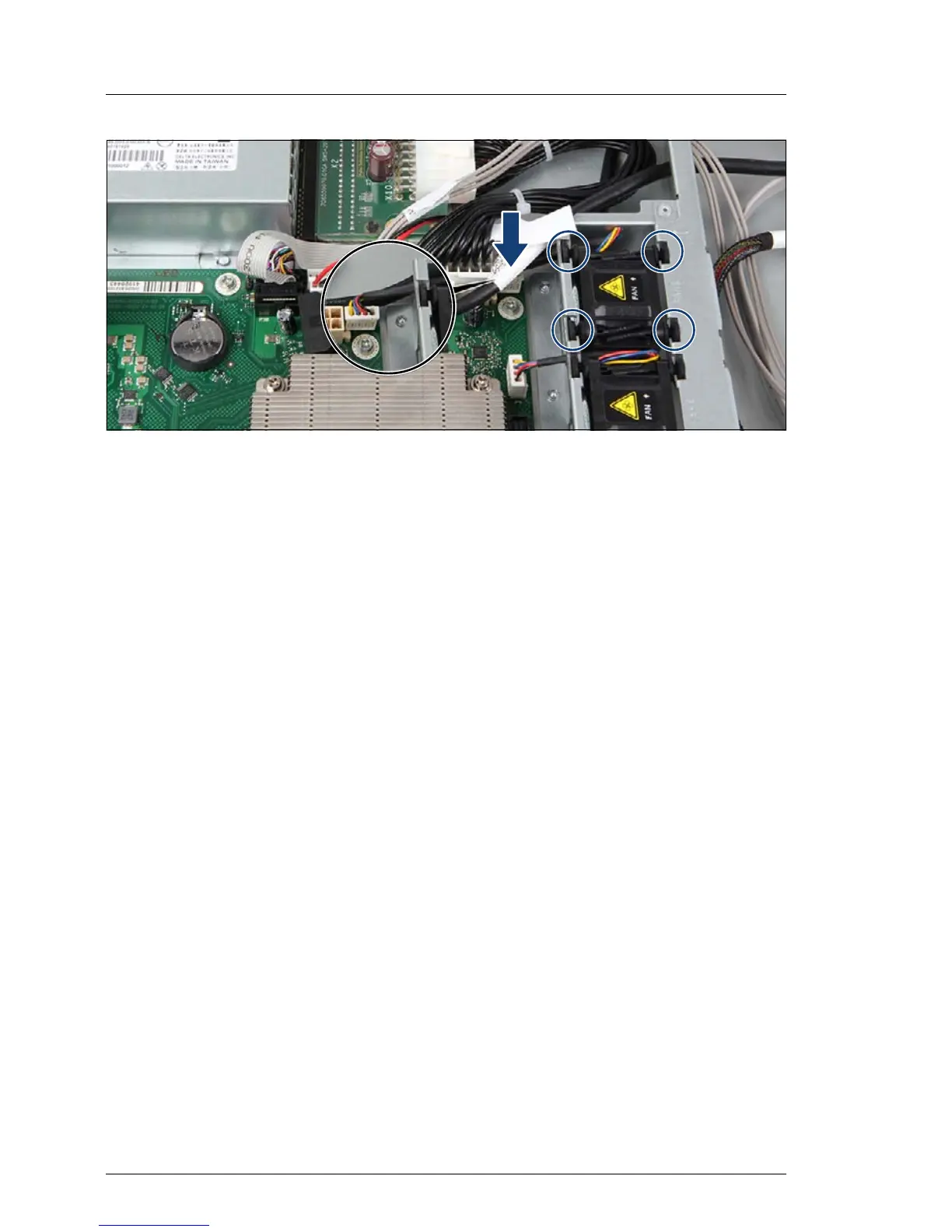

Figure 47: Installing fan module 5
Ê Press down the four rubber pins until they engage (see circles).
Ê Connect the fan cable to connector "FAN5" on the system board.
6.4.4 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
Ê "Resuming BitLocker functionality" on page 84

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
