110 Upgrade and Maintenance Manual

RX1330 M1

Power supply

6.4.3 Installing the upgrade kit

Installing the PSU cage

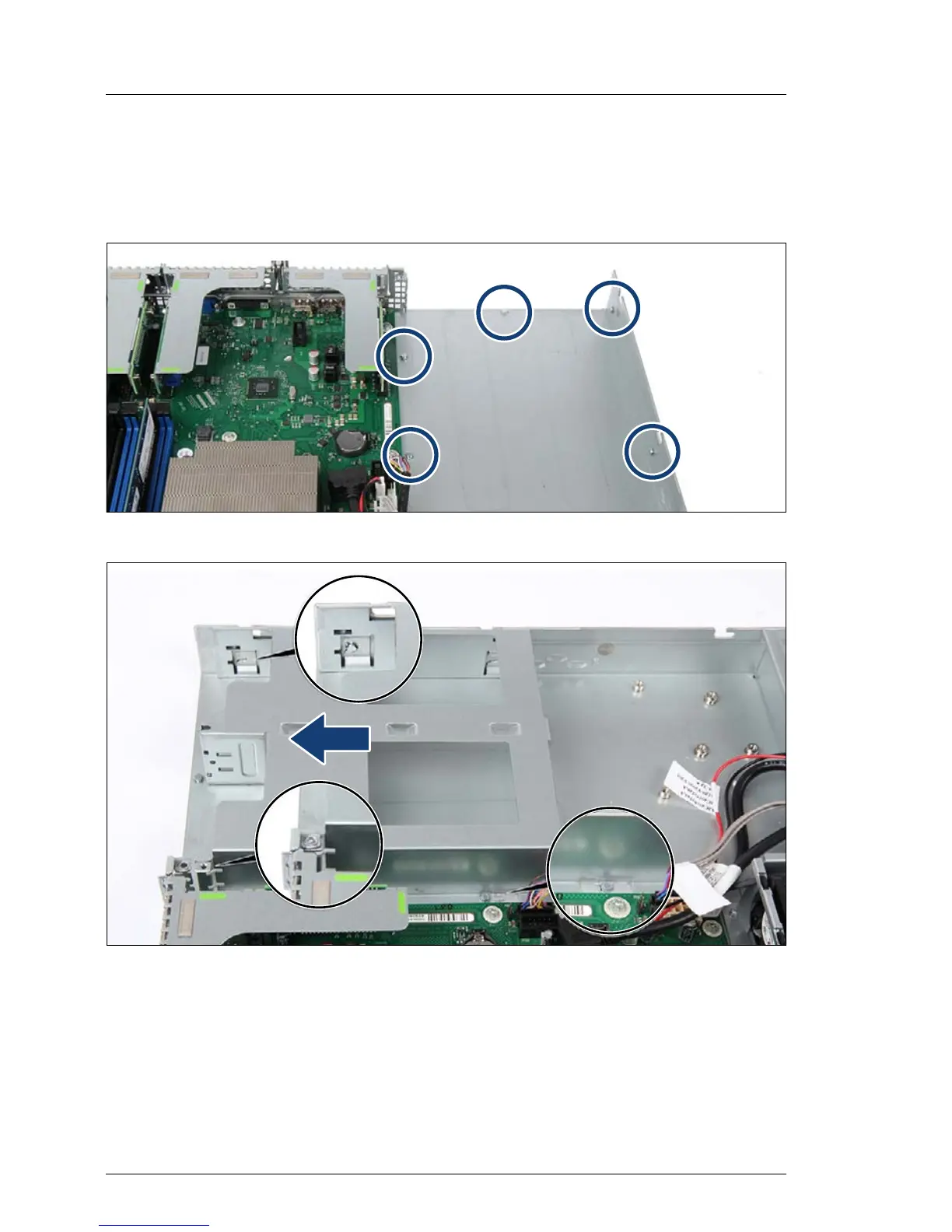

Figure 40: Positions of the bolts

Figure 41: Inserting the PSU cage

Ê Insert the PSU cage in the housing and push it to the rear side.

V CAUTION!

The PSU cage must engage in the five bolts (positions see figure 40).
