Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

52 Upgrade and Maintenance Manual RX1330 M1
Basic hardware procedures
4.5 Reassembling
V CAUTION!
● Before attaching the covers, make sure no unnecessary parts or tools
are left inside the server.
● The top cover must be replaced as soon as possible for purposes of
cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires.
● For further safety information, please refer to chapter "Important
information" on page 31.
4.5.1 Installing the top cover

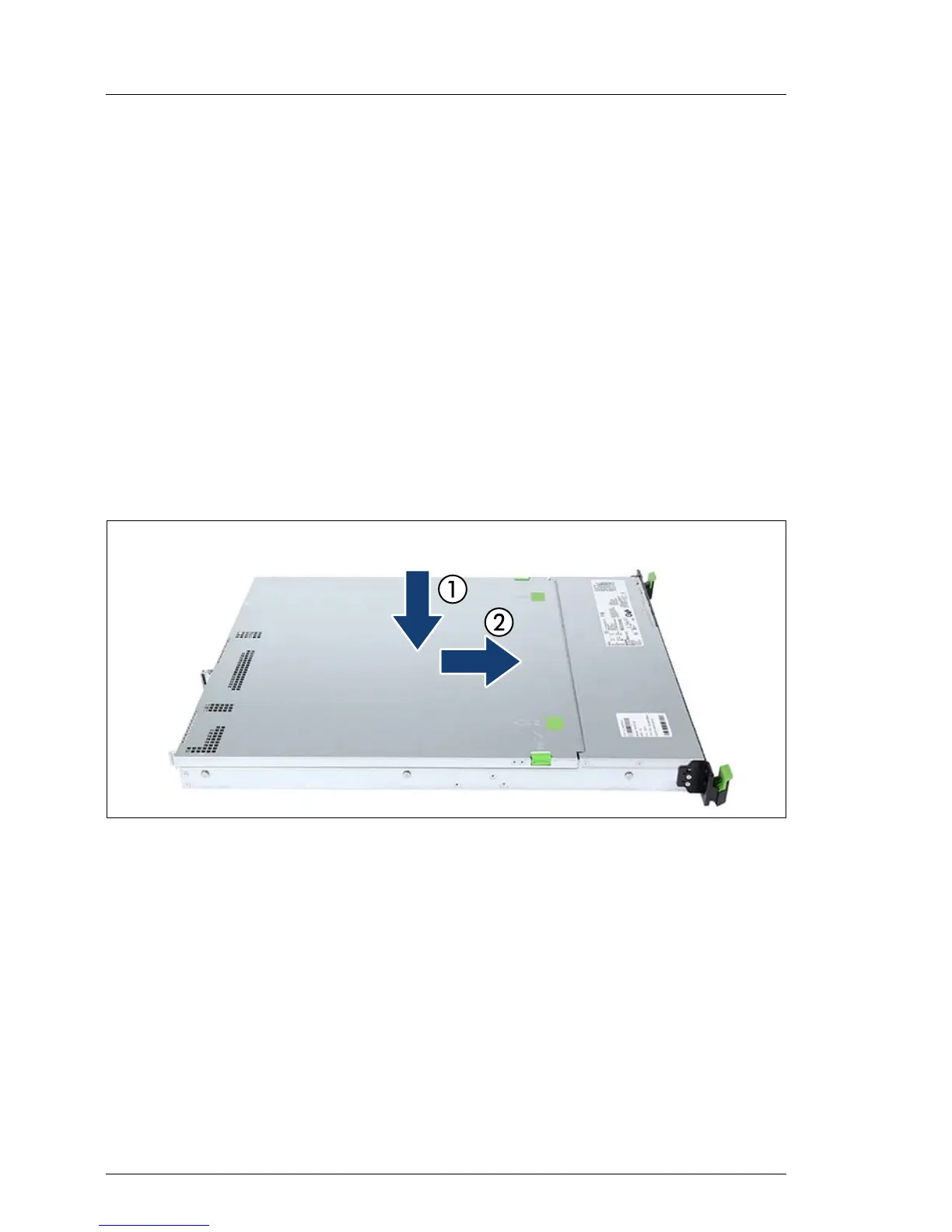

Figure 7: Attaching the top cover
Ê Place the top cover on the server (1).
Ê Push the top cover as far as it will go in the direction of the arrow (2) until it
clicks in.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
