Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

134 Upgrade and Maintenance Manual RX1330 M1
Hard disk drives / solid state drives

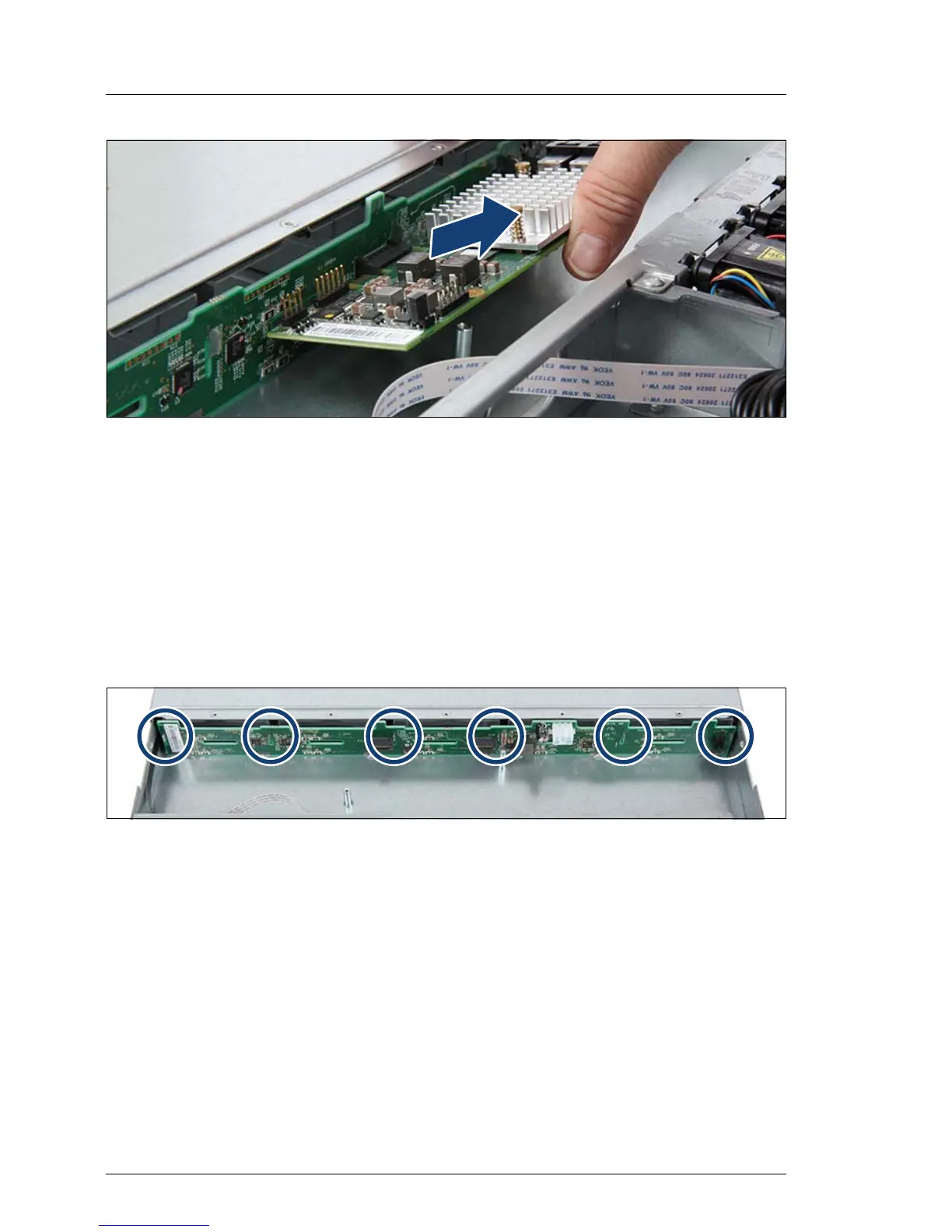

Figure 68: Removing the SAS expander board (B)
Ê Get the SAS expander board out of the two connectors of the HDD
backplane and remove it.
V CAUTION!
Lift up the SAS expander board while removing it in order to prevent
the components to be damaged by the stand-offs of the chassis.
7.2.9.3 Removing the defective 10 x 2.5-inch HDD backplane
Figure 69: Removing the 10 x 2.5-inch HDD backplane
Ê Pull the HDD backplane upward until the six hooks disengage (see circles).
Ê Take out the HDD backplane.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
