242 Upgrade and Maintenance Manual RX1330 M1
Front panel
13.3.1.2 Removing the dummy cover

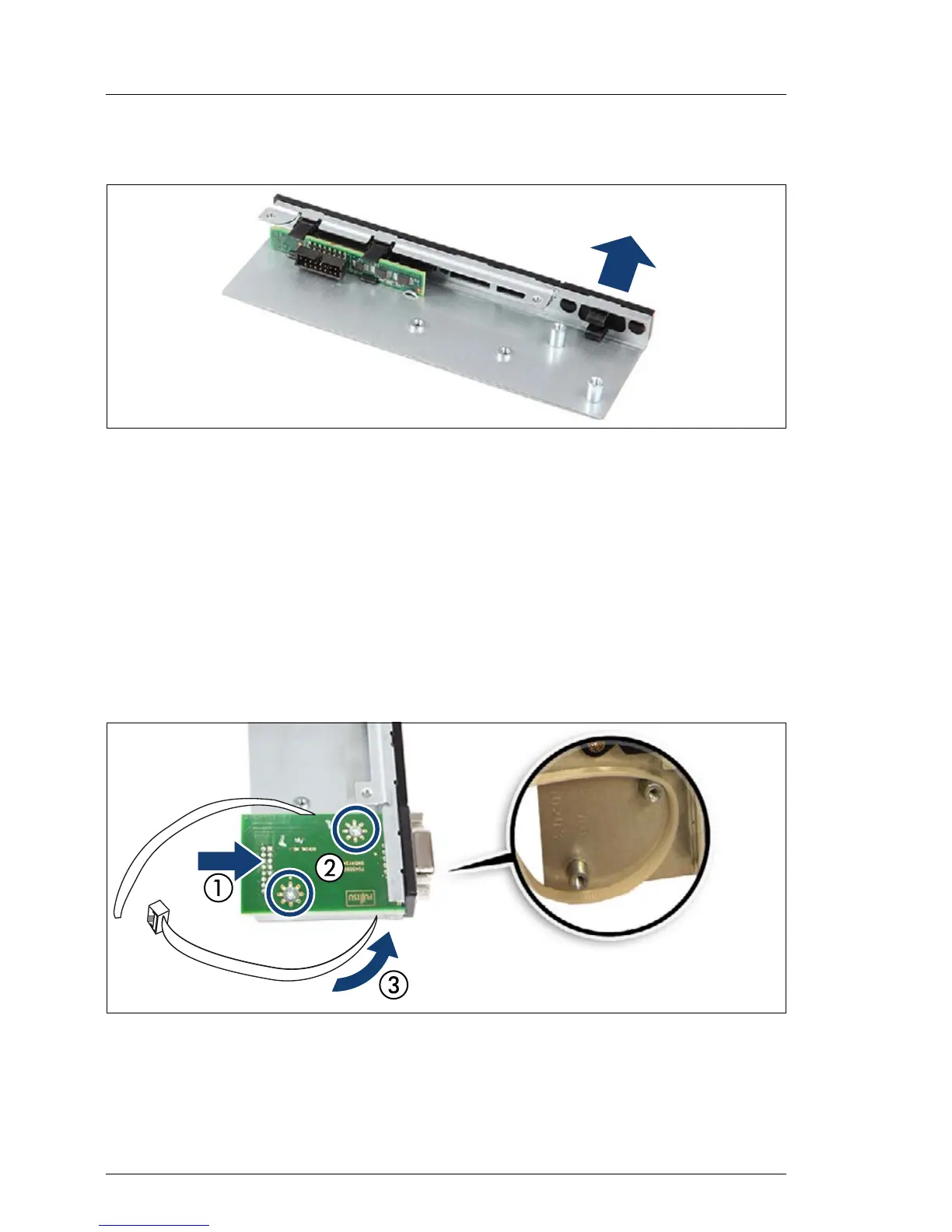

Figure 173: Removing the dummy cover
Ê Remove the dummy cover.
V CAUTION!
Keep the dummy cover for future use. If you remove the front VGA board
again and do not replace it with a new one, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
13.3.1.3 Installing the front VGA board
Figure 174: Installing the front VGA board
Ê Push the front VGA connector in the corresponding recess (1) and fasten the
front VGA board with two screws (2).
Ê Route the cable tie under the front VGA board (3).

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
