Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 285
Cables
15.2 Cabling

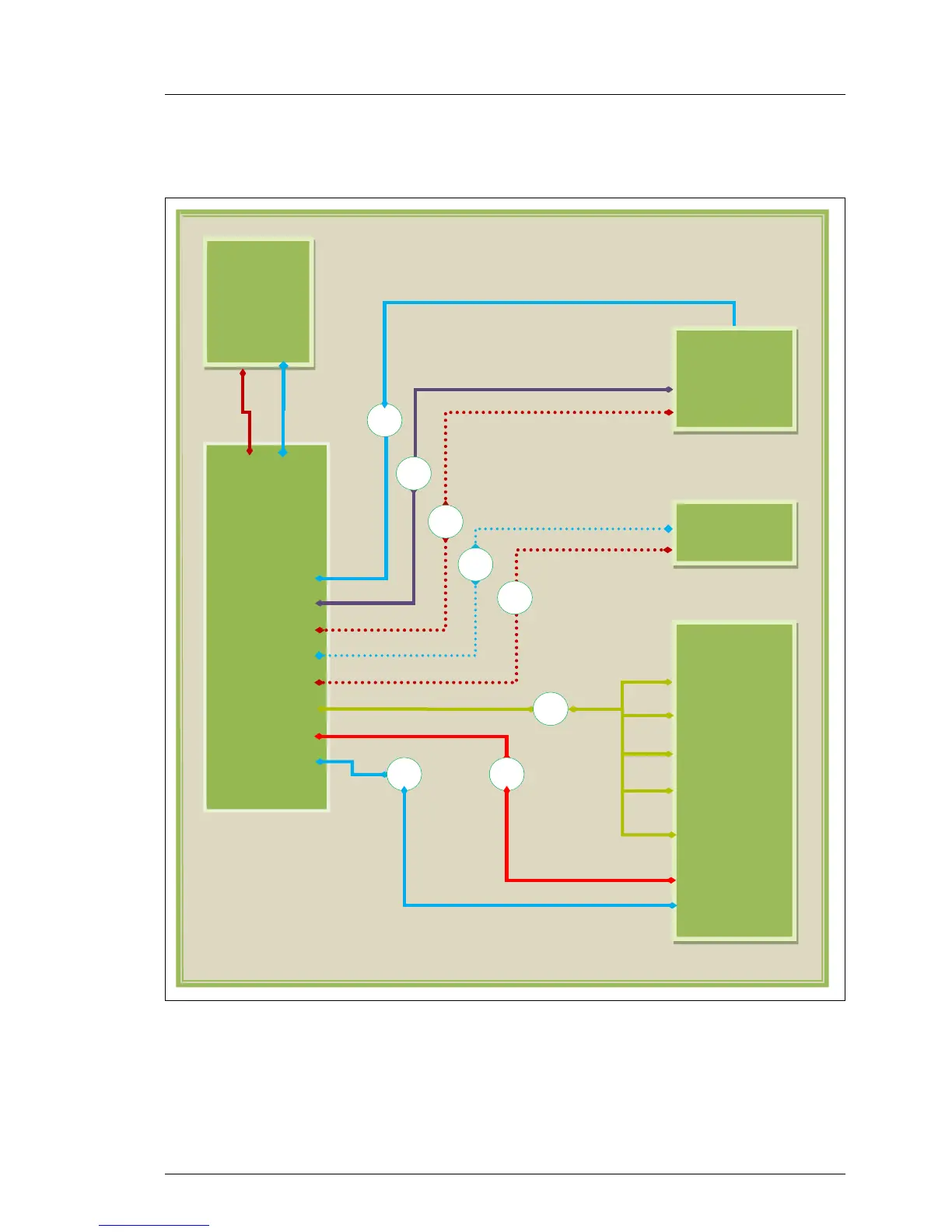

Figure 205: Cabling 4x 3.5-inch HDD, standard power supply
PSU E614-
V70
P
W
R
C
T
R
L
P
W
R
D3229
SATA HDD
P
W
R
C
T
R
L
P
W
R
Frontpanel
Front USB
Front VGA
ODD Data
ODD PWR (PWR4)
HDD PWR
SMBus
DVD
(opt.)
SAS BP
A3C40157818
4 x 3.5“
Frontpanel
+ 2x USB
Front USB
Front VGA (optional)
C1
Data
PWR
P1
P2
P3
P4
C13
PWR
SMBus
C6
C7
C3
C5
C4
C8
SGPIO

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
