Fujitsu PRIMERGY RX1330 M1

RX1330 M1 Upgrade and Maintenance Manual 187
Expansion cards and backup units
9.5.1.2 Preparing the BBU
V CAUTION!
Do not connect the cable using excessive force, the connector is weak.

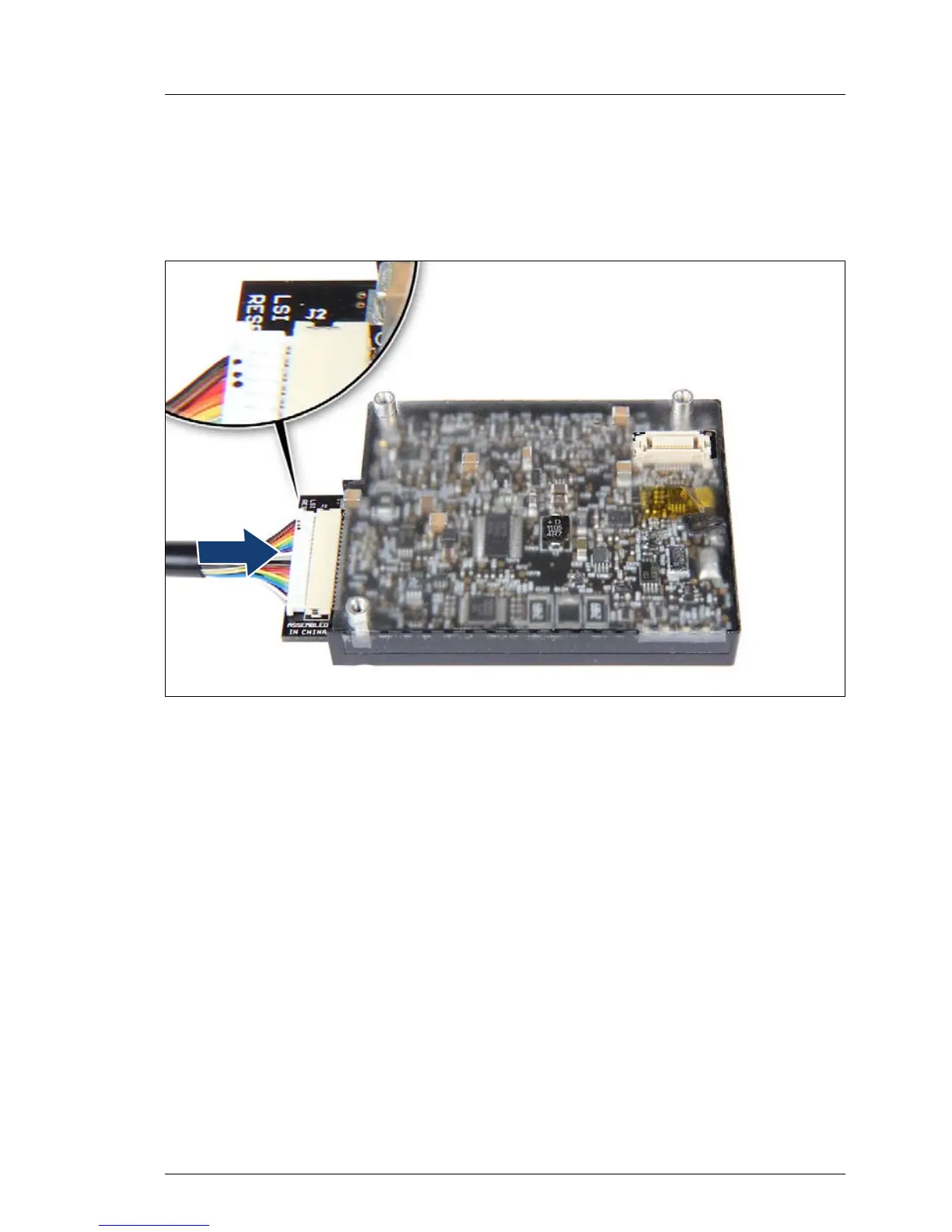

Figure 122: Connecting the BBU cable
Ê Connect the BBU cable to the BBU.
V CAUTION!
Make sure that the connector side with the three dots is on the top (see
close-up). Otherwise you risk short-circuits.
