Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

272 Upgrade and Maintenance Manual RX1330 M1
System board and components

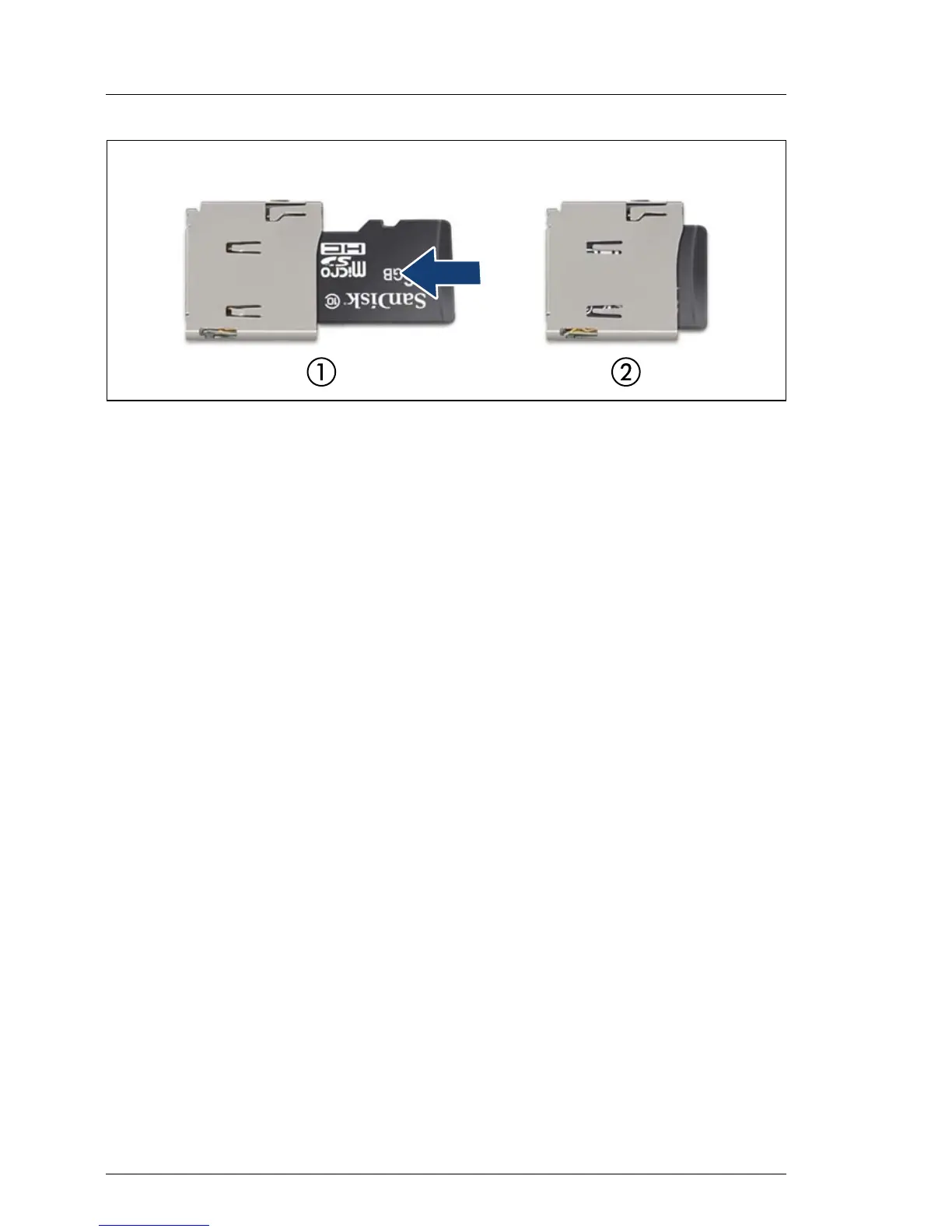

Figure 201: Installing the iRMC microSD card
Ê With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) until it locks in place (2).
I The onboard position of the microSD card slot can be found in section
"Connectors and indicators on the system board" on page 300.
14.5.1.3 Concluding steps
Ê Install the riser module 1 as described in section "Installing a riser module"
on page 60.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
