Fujitsu PRIMERGY RX1330 M1 - Removing the Top Cover

RX1330 M1 Upgrade and Maintenance Manual 51
Basic hardware procedures
4.4.3 Removing the top cover

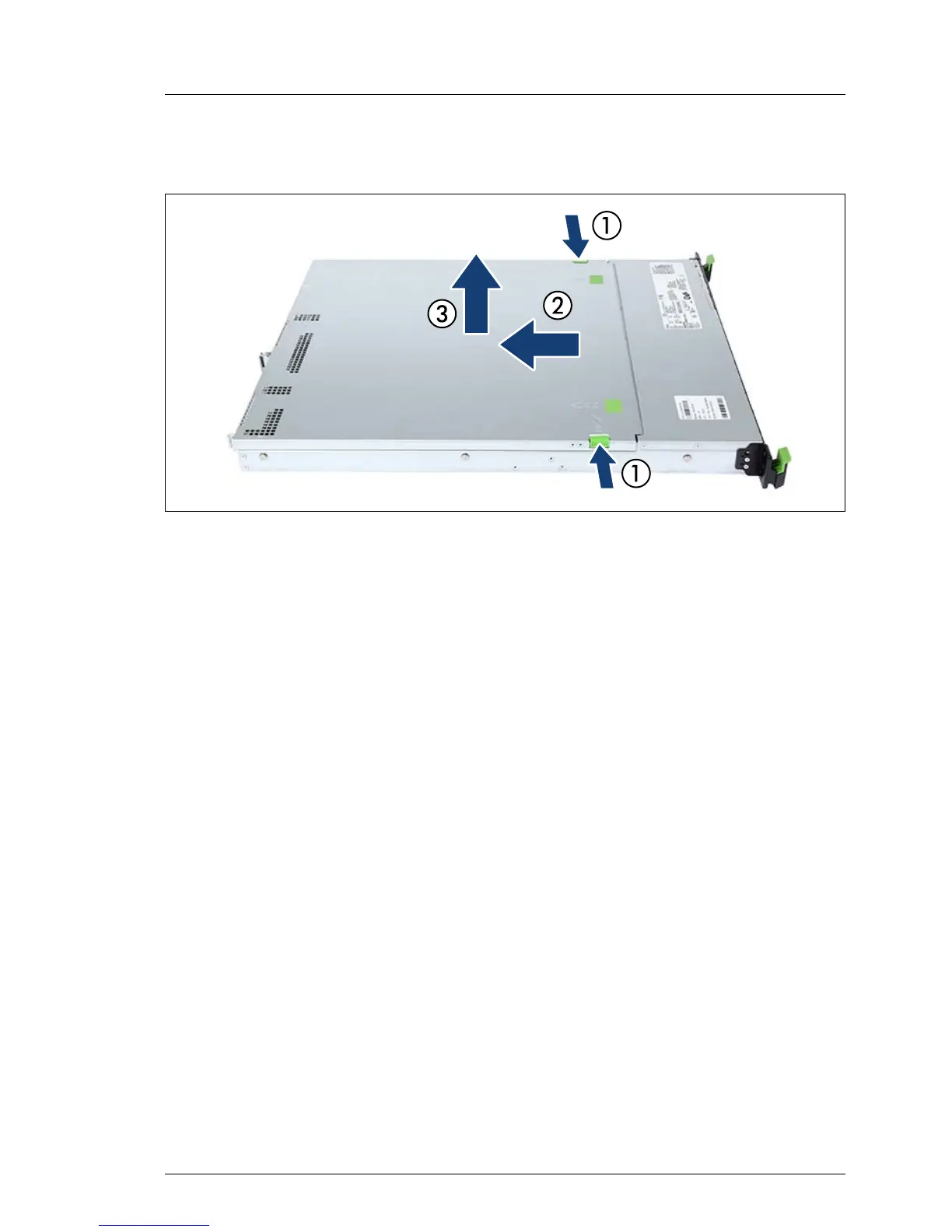

Figure 6: Removing the top cover
Ê Push green touch points inside (1).
Ê Push the top cover as far as it will go in the direction of the arrow (2).
Ê Lift off the top cover upward (3).
