254 Upgrade and Maintenance Manual RX1330 M1
System board and components
14.3 USB Flash Module (UFM)
14.3.1 Installing the UFM
14.3.1.1 Preliminary steps
Ê "Disabling SVOM boot watchdog functionality" on page 64
Ê "Suspending BitLocker functionality" on page 63
Ê "Shutting down the server" on page 45
Ê "Disconnecting the server from the mains" on page 46
Ê "Getting access to the component" on page 47
Ê Remove the riser module 3 as described in section "Removing a riser
module" on page 58.
14.3.1.2 Installing the UFM

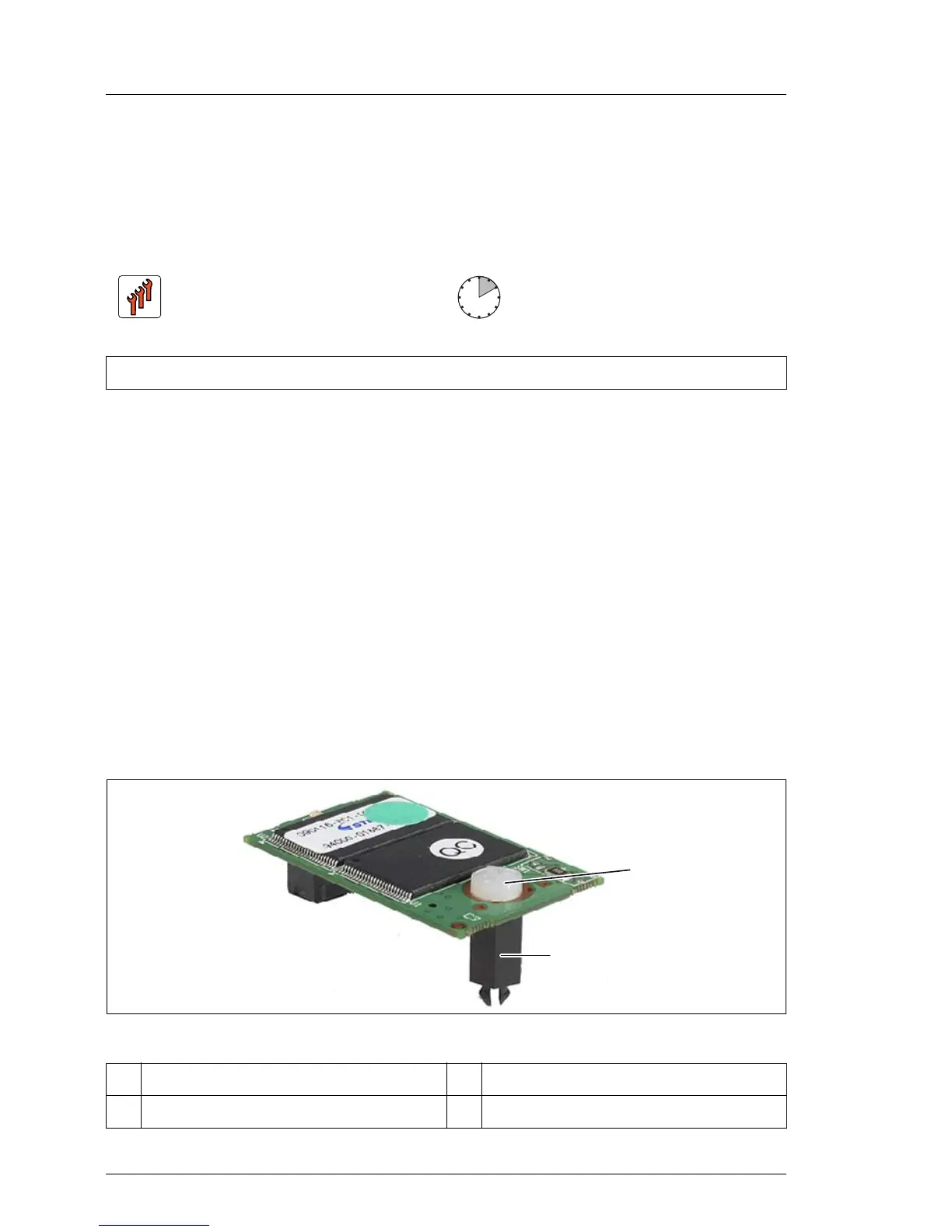

Figure 184: UFM installation kit
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Software: 5 minutes
Tools: tool-less
1 USB Flash Module (UFM) 3 UFM spacer
2 UFM nylon screw
