RX1330 M1
Upgrade and Maintenance Manual 295
16 Appendix
16.1 Mechanical overview
16.1.1 Server front

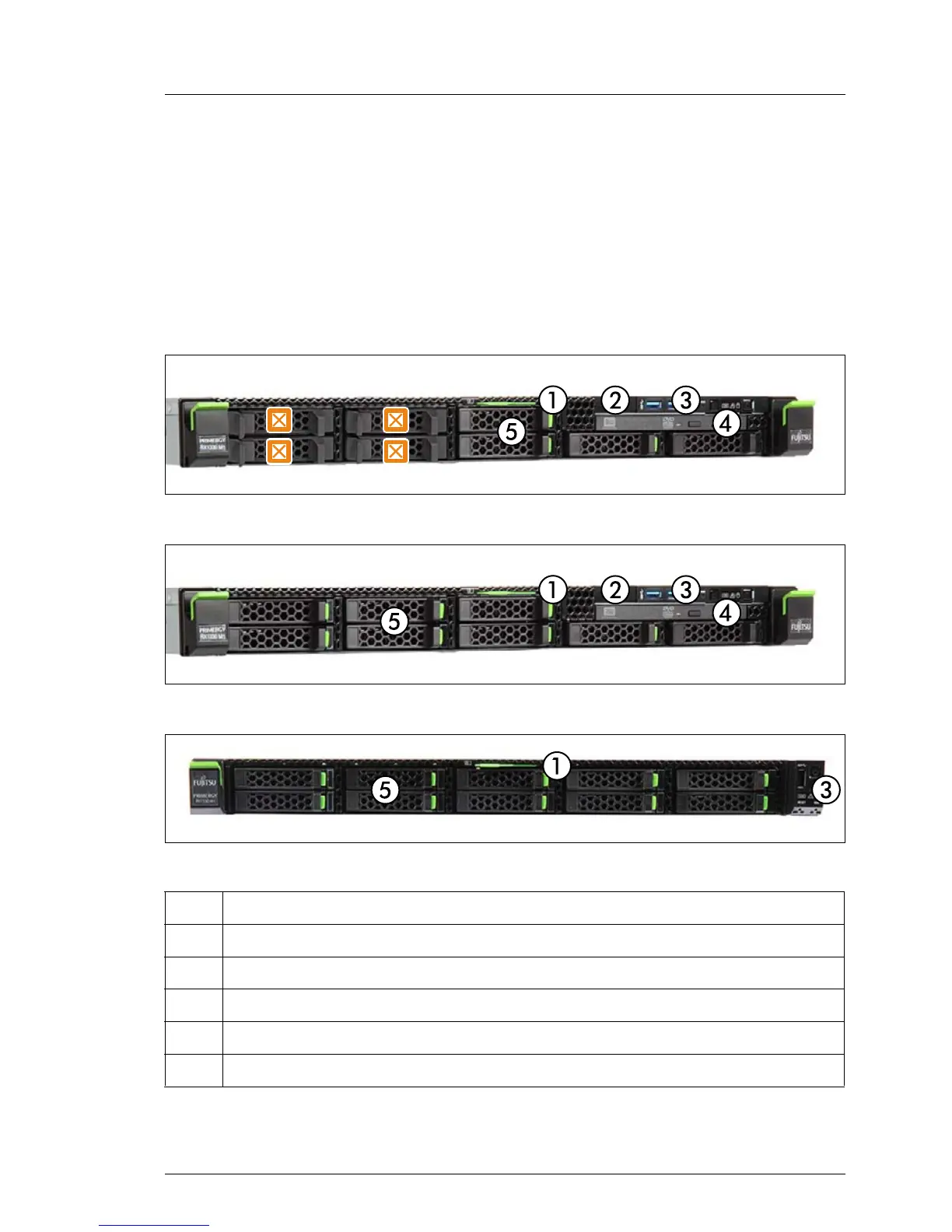

Figure 215: Front side 2.5-inch HDDs (up to 4 HDDs)
Figure 216: Front side 2.5-inch HDDs (up to 8 HDDs)
Figure 217: Front side 2.5-inch HDDs (up to 10 HDDs)
Pos. Component
1ID card
2 Front VGA (option) / dummy cover
3 Front panel and indicators
4 ODD (option) / dummy cover
5 4x /8x /10x 2.5-inch hard disk drives / dummy modules
