16.1.3 Server interior

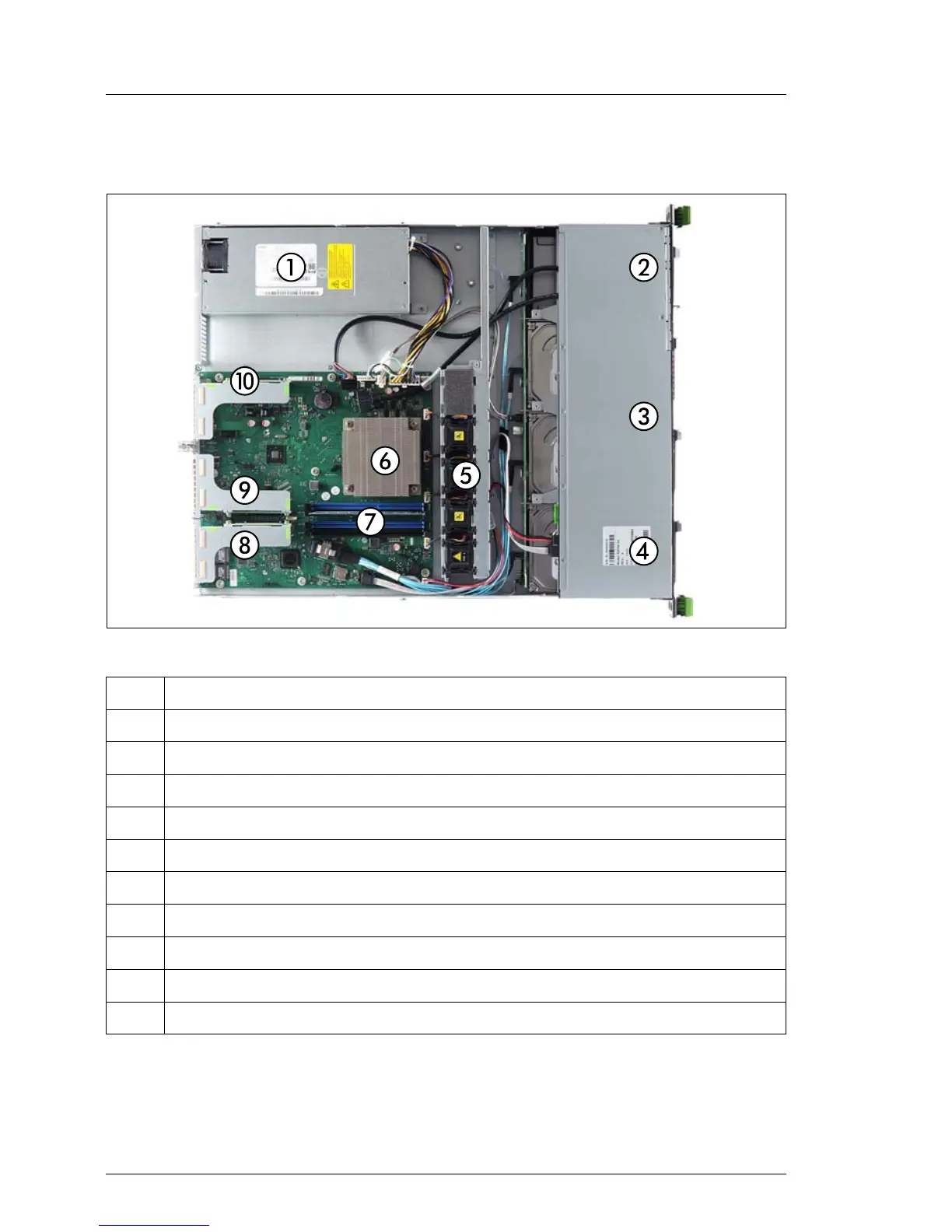

Figure 222: Interior (example 3.5-inch HDDs and standard power supply)
Pos. Component
1 Standard power supply: one power supply unit
2 Front panel module / front VGA (option) / dummy cover
3 Up to 4x 3.5-inch hard disk drives / dummy modules
4 ODD (option) / dummy cover
5 4x fan modules
6Processor
7 Main memory
8 Riser module 1
9 Riser module 2
10 Riser module 3
