16.2.3 Indicators on the accessible drives/components
Optical drive activity indicator

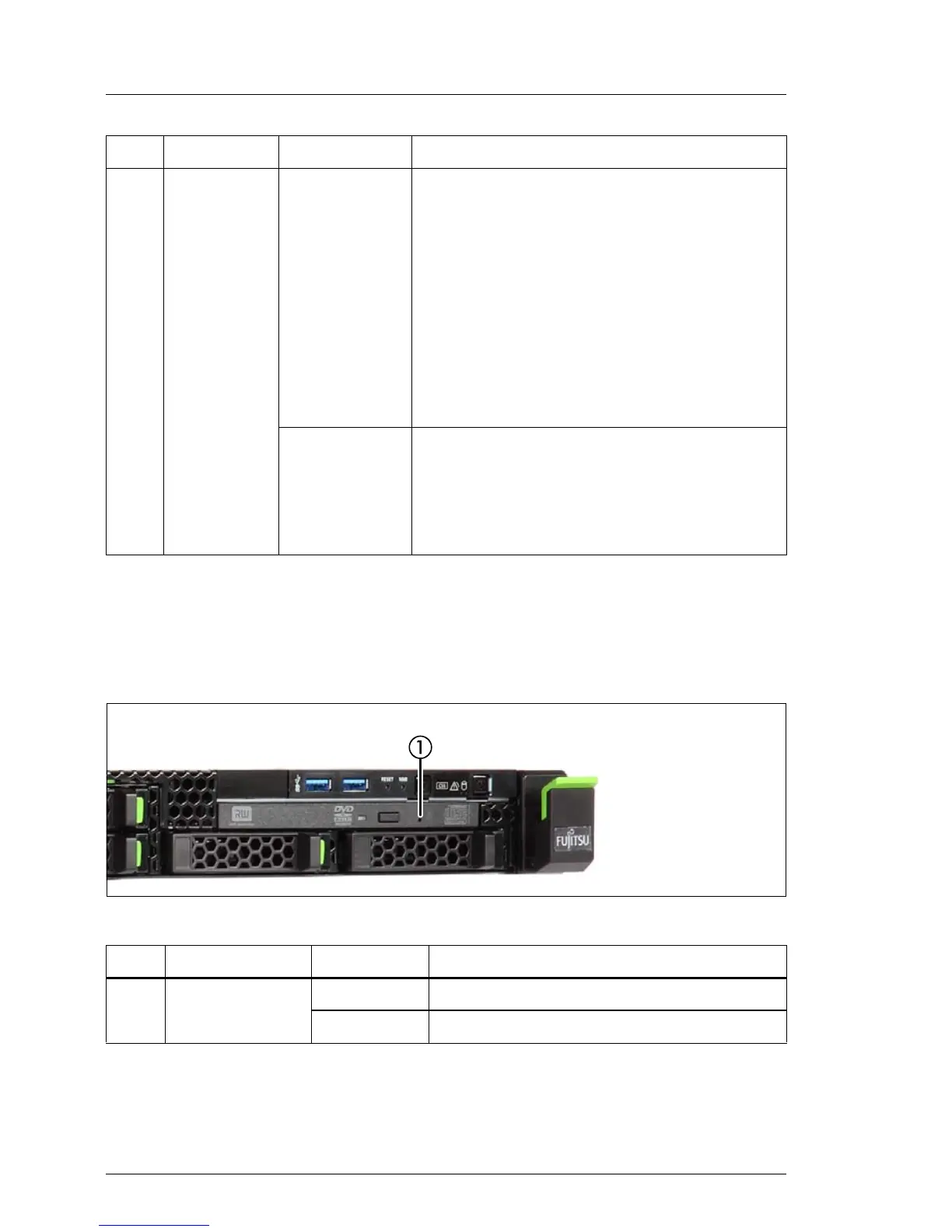

Figure 231: Indicator on the optical drive
8
Power-off
indicator
(AC
connected)
green on
is on in the following cases:
– the system is in power-off mode but
connected to the mains (AC
connected)
– the system has been switched on and
is in power-on delay
I After connecting the server to the
mains it takes about 60 seconds
until the server enters the standby
mode.
off
is off in the following cases:
– the system is not connected to the
mains
– the system is powered on and in
normal operation (S0)
Pos. Indicator Status Description
1
Activity
indicator
off optical drive inactive
green on storage medium is being accessed
Pos. Indicator Status Description

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
