RX1330 M1 Upgrade and Maintenance Manual 149
Hard disk drives / solid state drives

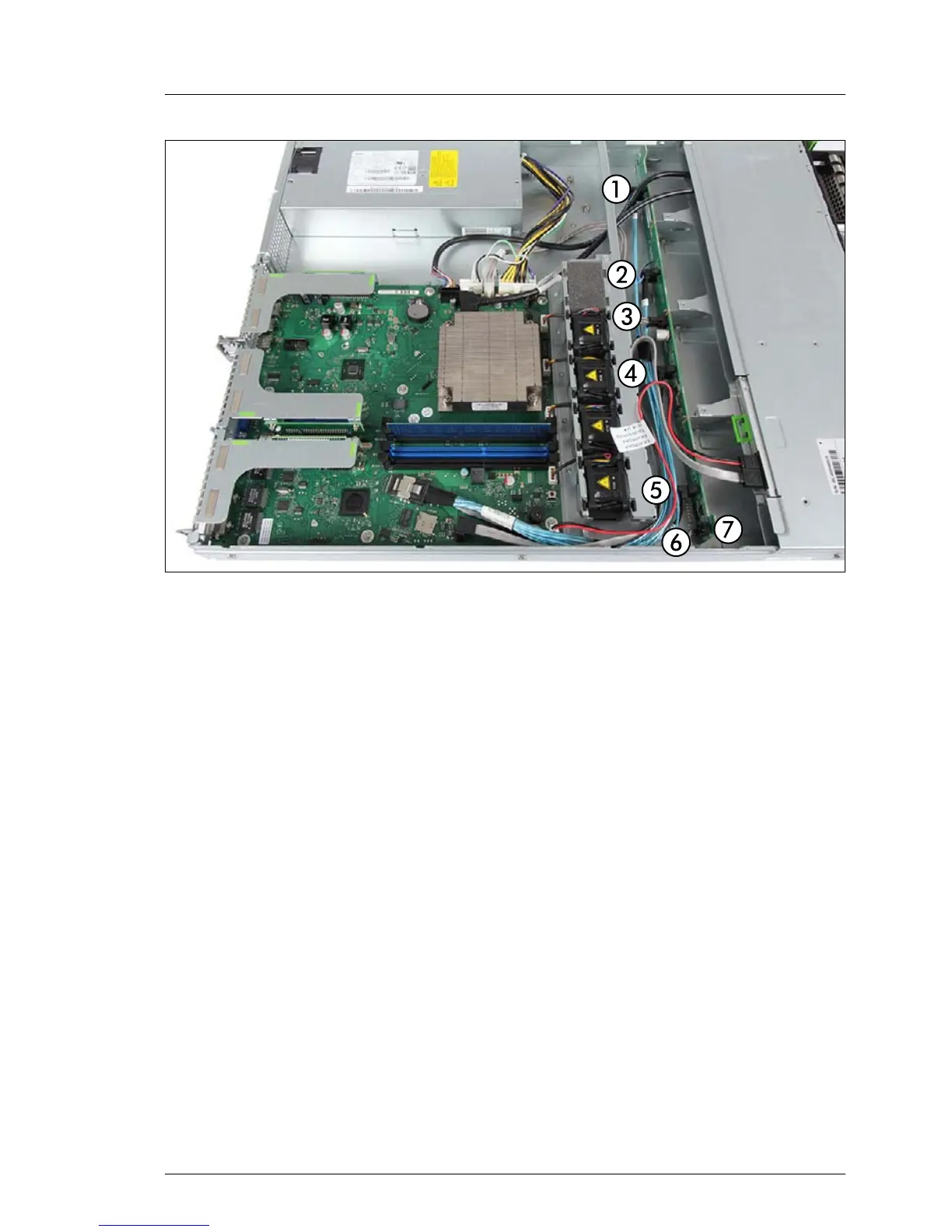

Figure 84: Connecting the cables to the 3.5-inch HDD backplane
Ê Connect the following cables to the HDD backplane:
– SAS/SATA data cable:
(1), (2), (4), (5) to connectors "P1", "P2", "P3", "P4" according to the
length
(6) plug P6 to connector "SGPIO"
– (3) power cable to connector "PWR"
– (7) OOB cable to connector "SMBus" (if applicable)
For the cable plan see section "Cabling" on page 285.
7.3.5.4 Concluding steps
Ê Insert all HDD modules, see section "Installing a 3.5-inch HDD module" on
page 143.
I Make sure that you reinstall the HDD module in the bay it was located
before the HDD backplane replacement.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
