180 Upgrade and Maintenance Manual
RX1330 M1
Expansion cards and backup units
9.4.5.3 Installing the new TFM
Example RAID controller D3216

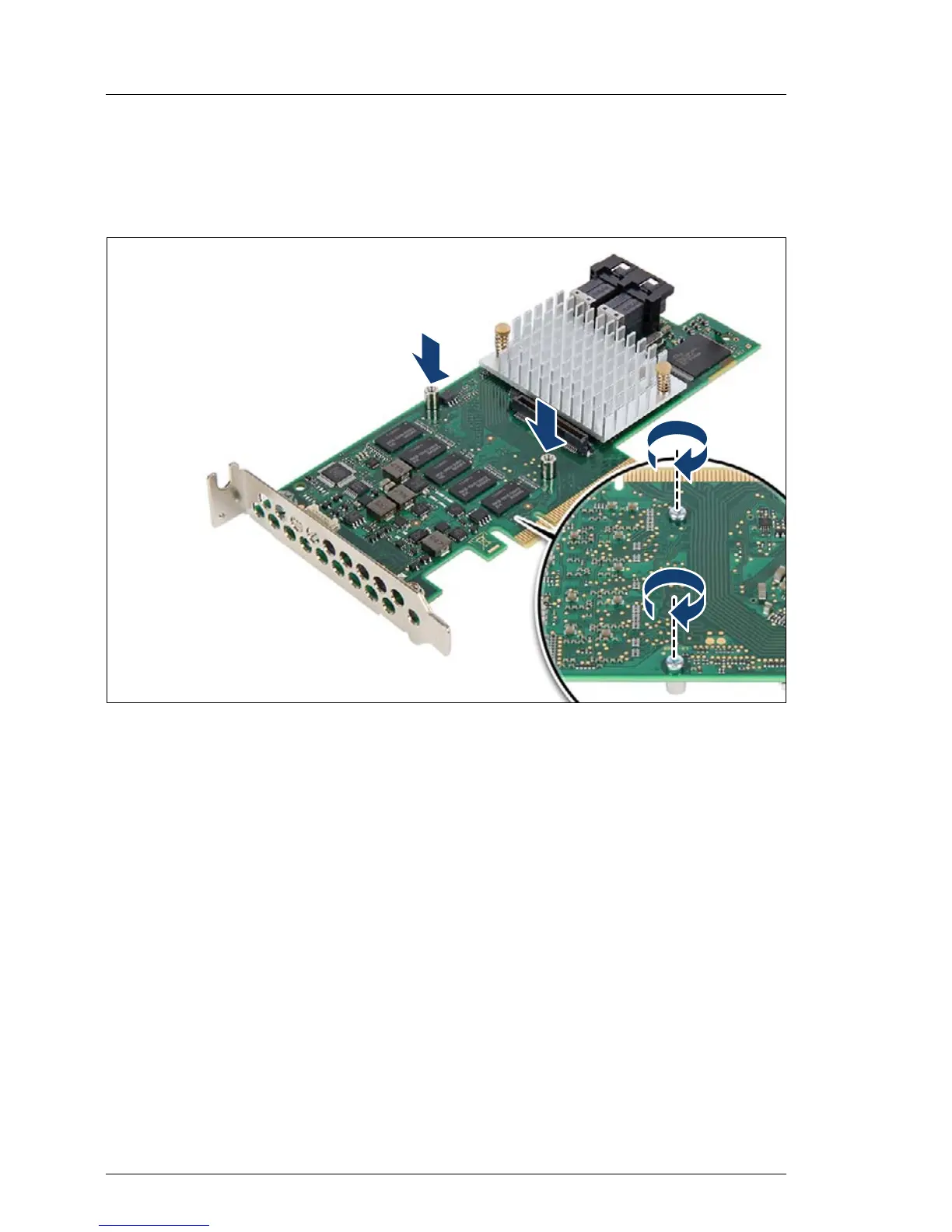

Figure 113: Installing the TFM (A)
Ê If no TFM has been installed before: fit the two spacer bolts on the RAID
controller.
