Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 131
Hard disk drives / solid state drives
Right side 4 x 2.5-inch HDD backplane (A3C40157828)

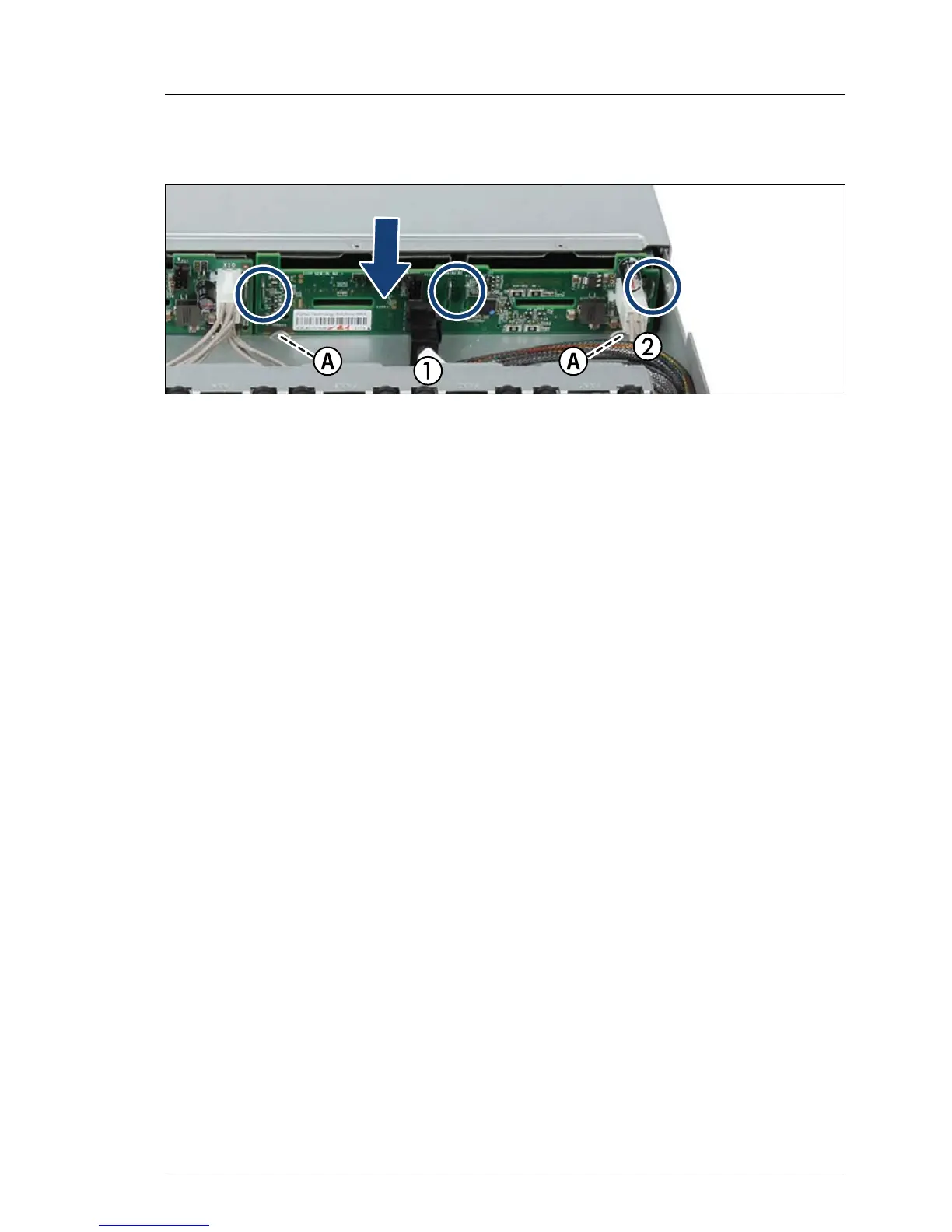

Figure 64: Installing the 4 x 2.5-inch HDD backplane
Ê Position the HDD backplane on the four hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the lower cant of the
HDD backplane fits in the guides (A).
V CAUTION!
Ensure that none of the cables are strained or damaged!
Ê Connect the following cables to the HDD backplane:
– (1) SAS cable to connector "X5" on the HDD backplane
– (2) power cable to connector "PWR" on the HDD backplane
I If applicable, connect the OOB cable to connector "SMBus" on the
HDD backplane.
For the cable plan see section "Cabling" on page 285.
7.2.8.4 Concluding steps
Ê Insert all HDD/SSD modules, see section "Installing 2.5-inch HDD/SSD
modules" on page 120.
I Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
