Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

196 Upgrade and Maintenance Manual RX1330 M1
Expansion cards and backup units
9.5.3 Removing a BBU
9.5.3.1 Preliminary steps
Ê "Shutting down the server" on page 45
Ê "Disconnecting the server from the mains" on page 46
Ê "Getting access to the component" on page 47
9.5.3.2 Removing the BBU with the holder

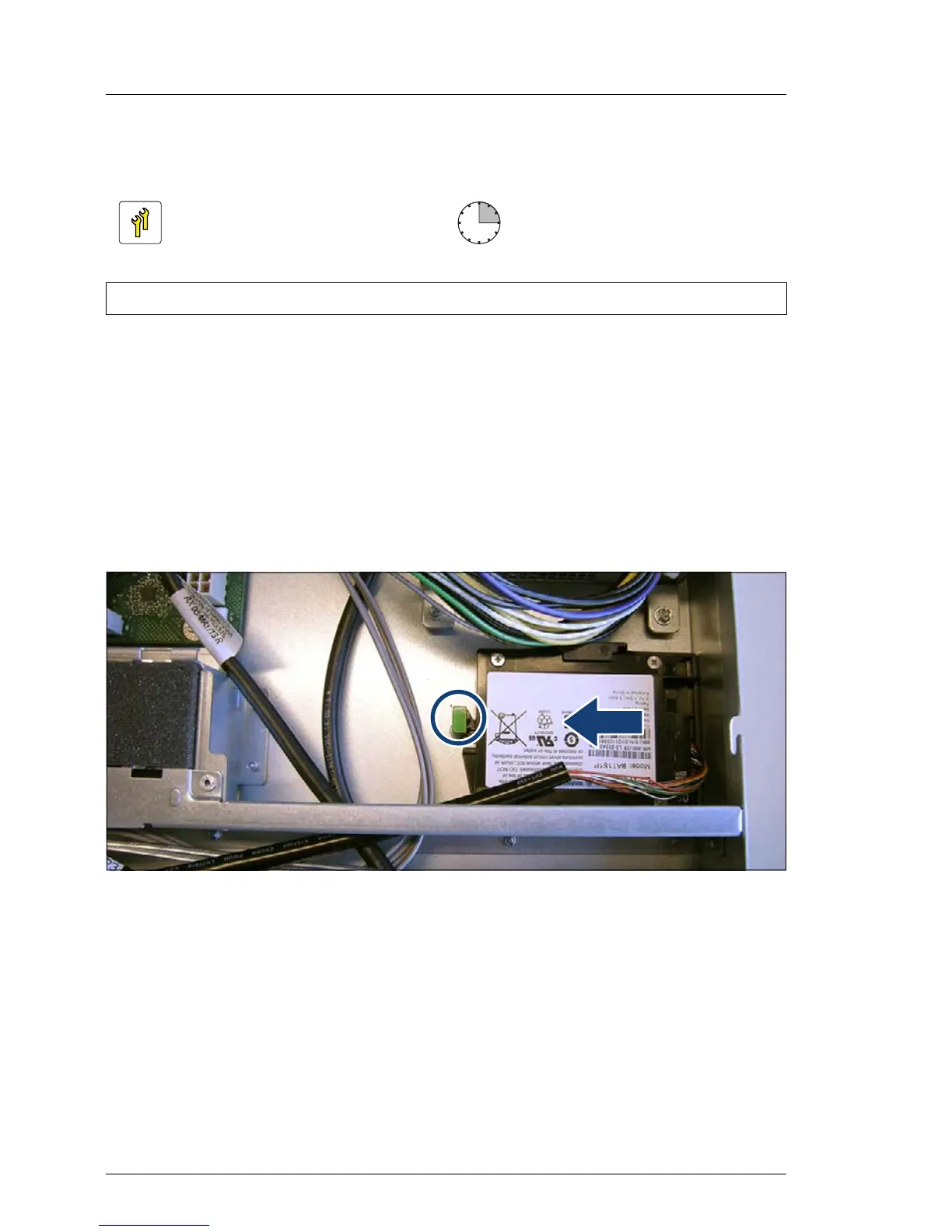

Figure 132: Removing the BBU with the holder
Ê Lift up the green locking handle on the holder (see circle) while sliding the
holder in direction of the arrow as far as it will go.
I After that, the shoulder screw caps on the chassis floor will rest in the
wide ends of the keyhole slots on the holder.
Ê Lift the holder out of the chassis.
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Tools: tool-less

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
