Front panel
Ê If applicable, remove the front VGA board with the front VGA connector as
described in section "Removing the front VGA board" on page 244.
13.2.1.3 Installing the front panel module
Ê If applicable, install the front VGA board with the front VGA connector as
described in section "Installing the front VGA board" on page 242.

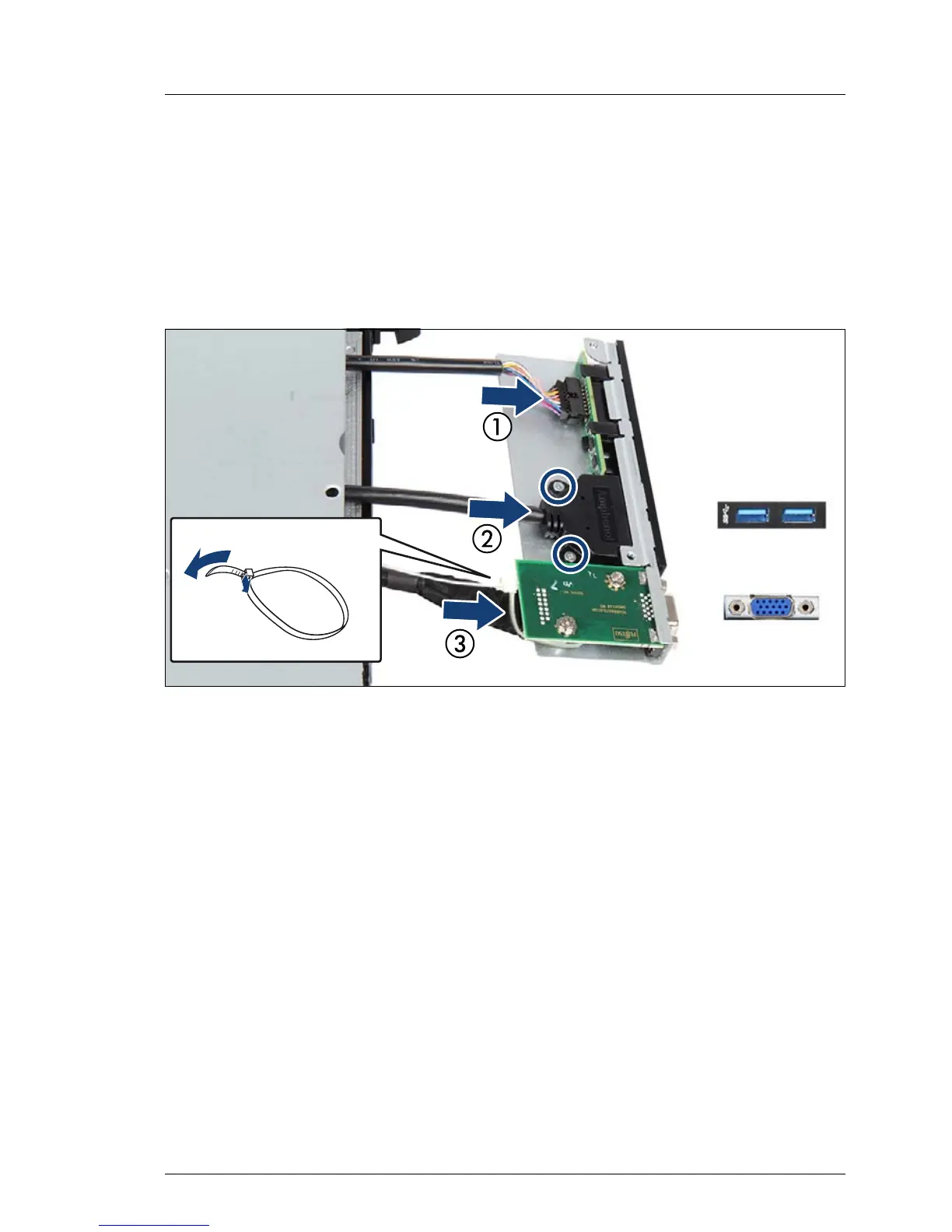

Figure 169: Connecting cables to the front panel module
Ê Connect the front panel cable (1).
Ê Push the front USB connector in the corresponding recess and fasten the
front USB cable with two screws (2).
Ê If applicable, connect the front VGA cable to the front VGA board (3).
I If the VGA cable was secured with a cable tie, secure the VGA cable
with the cable tie.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
