Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 119
Hard disk drives / solid state drives
7.2.4 Configuration with up to 10 HDD/SSD modules
Mounting order

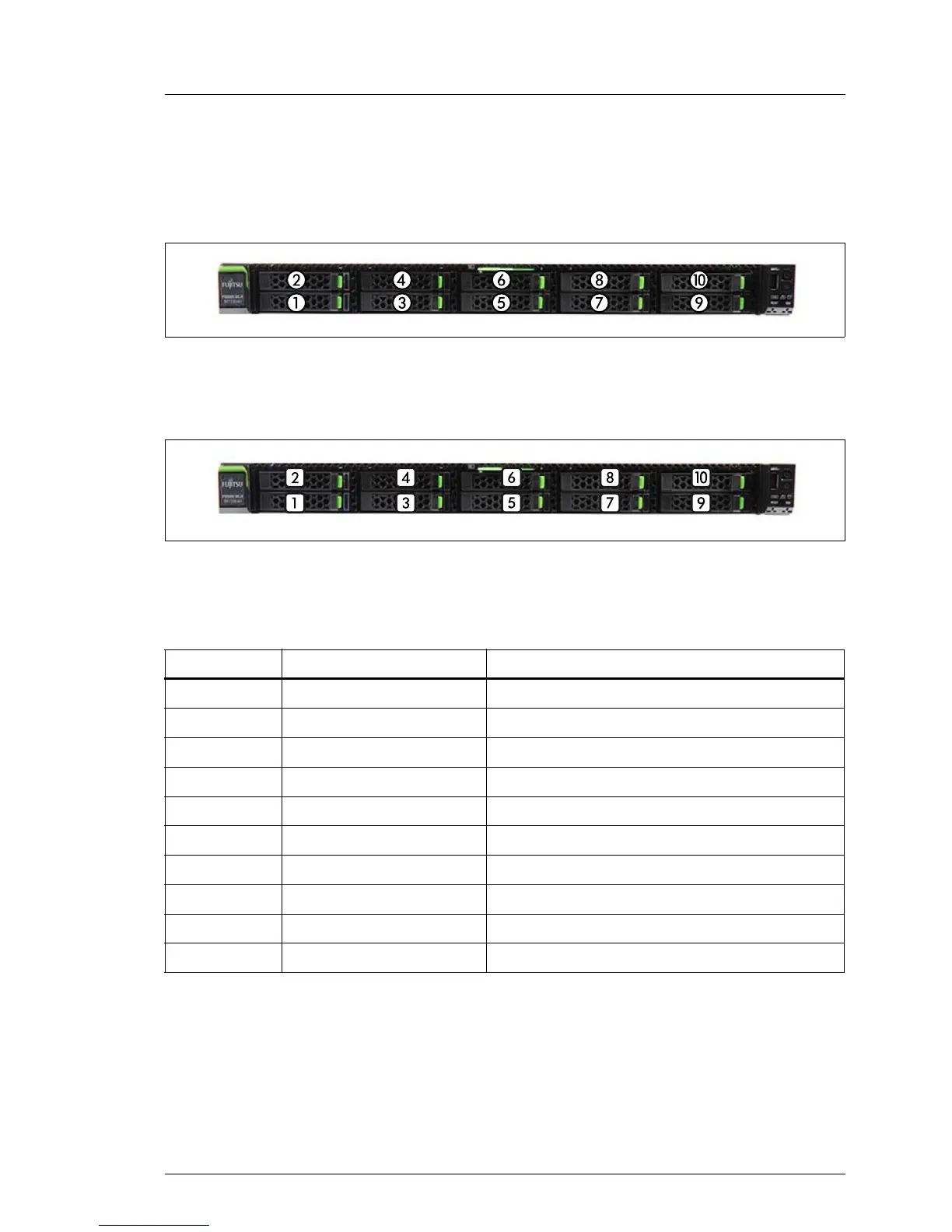

Figure 52: Mounting order with up to ten HDD/SSD bays
HDD/SSD naming scheme
Figure 53: Naming scheme with up to ten 2.5-inch HDDs/SSDs
I The HDD/SSD numbering as listed in the ServerView RAID Manager
differs from the HDD/SSD mounting order:
Position Logical drive number ServerView RAID Manager display name
[1] 0 HDD vendor name (0)
[2] 1 HDD vendor name (1)
[3] 2 HDD vendor name (2)
[4] 3 HDD vendor name (3)
[5] 4 HDD vendor name (4)
[6] 5 HDD vendor name (5)
[7] 6 HDD vendor name (6)
[8] 7 HDD vendor name (7)
[9] 8 HDD vendor name (8)
[10] 9 HDD vendor name (9)

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
