Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 217
Processor

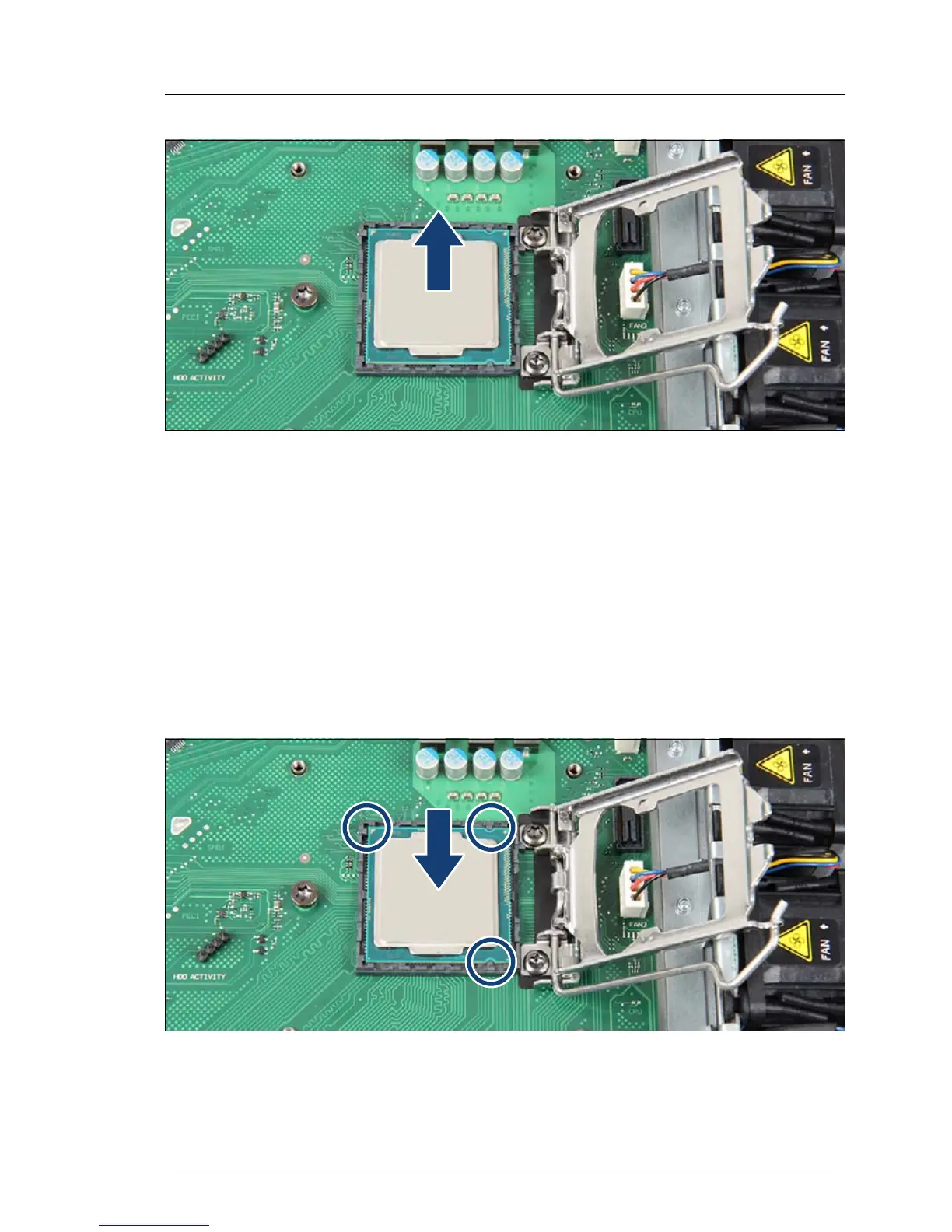

Figure 145: Removing the processor
Ê Lift the processor carefully out of the processor socket.
V CAUTION!
Be careful not to touch or bend the spring contacts on the processor
socket.
11.2.4 Installing the new processor
Ê Remove the protective cap from the bottom side of the processor.
Figure 146: Installing the processor
Ê Insert the new processor carefully into the processor socket. Notice the
coding (see circles).

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
