Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

206 Upgrade and Maintenance Manual RX1330 M1
Main memory
10.1 Basic information

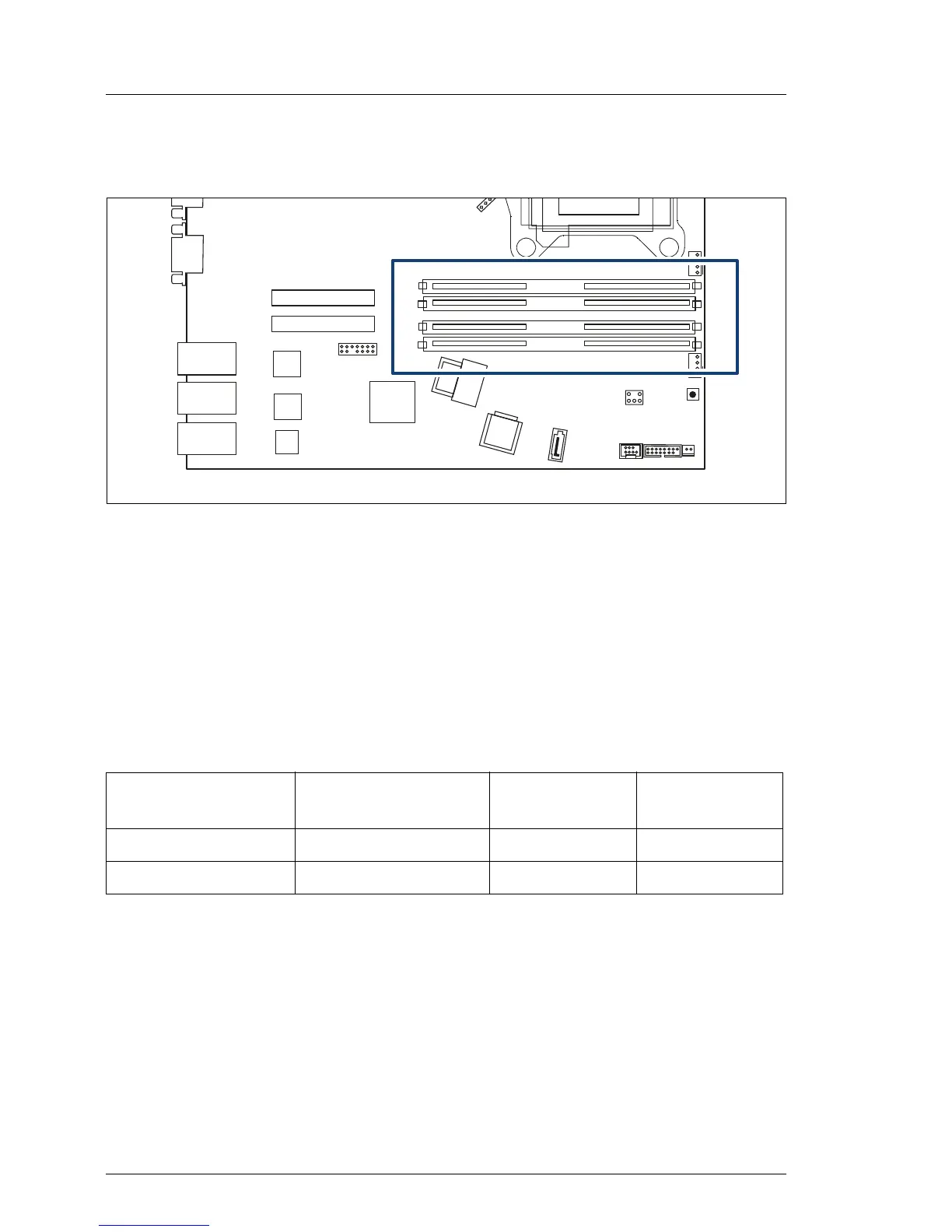

Figure 137: Slots of the main memory
The system board offers four slots for memory modules.
Types of memory modules
I For system relevant information, refer to your server’s hardware
configurator available online at the following address:
for the EMEA market:
http://ts.fujitsu.com/products/standard_servers/index.htm
for the Japanese market:
http://jp.fujitsu.com/platform/server/primergy/system/
Technology: DDR3 1600 unbuffered single rank (SR) or dual rank
(DR) UDIMM memory modules with ECC. Support for up
to 4 UDIMM memory modules.
Total memory size: up to 32 GB
Configuration per
channel
Max. speed DIMM-2 DIMM-1
1 DDR3-1600 empty SR/DR
2 DDR3-1600 SR/DR SR/DR
Front
VGA
SMB4
SATA5
iRMC
S4
Riser card (x4)
Indicate
CSS
TPM
Riser card (x8)
Shared
LAN
Standard
LAN
Slot2
Slot1
Jumper
Micro
SD
MLC
SATA1-4
DIMM2A
DIMM1A
DIMM2B
DIMM1B
Managem.
LAN
VGA
Intel
i210
Service
LAN
Intel
i210
HDD
ACTIVITY
FAN3
FAN2
FAN1
PWR4

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
