RX1330 M1
Upgrade and Maintenance Manual 237
Front panel
13.2.1.2 Removing the front panel module

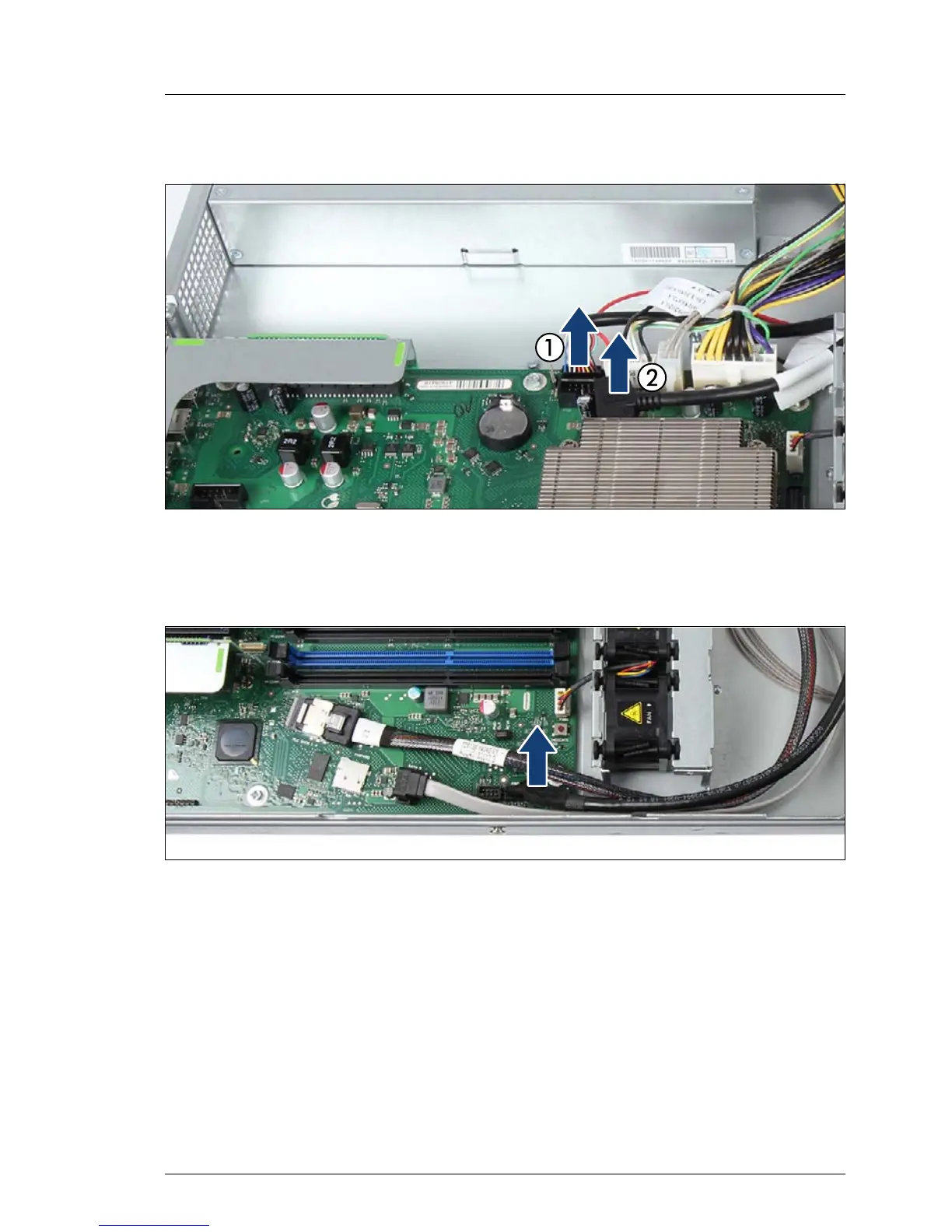

Figure 165: Disconnecting the cables (A)
Ê Disconnect the front panel cable (1) and the front USB cable (2) from the
system board.
Figure 166: Disconnecting the cables (B)
Ê If applicable, disconnect the front VGA cable from the system board.
