RX1330 M1

Upgrade and Maintenance Manual 197

Expansion cards and backup units

9.5.3.3 Removing the BBU from the holder

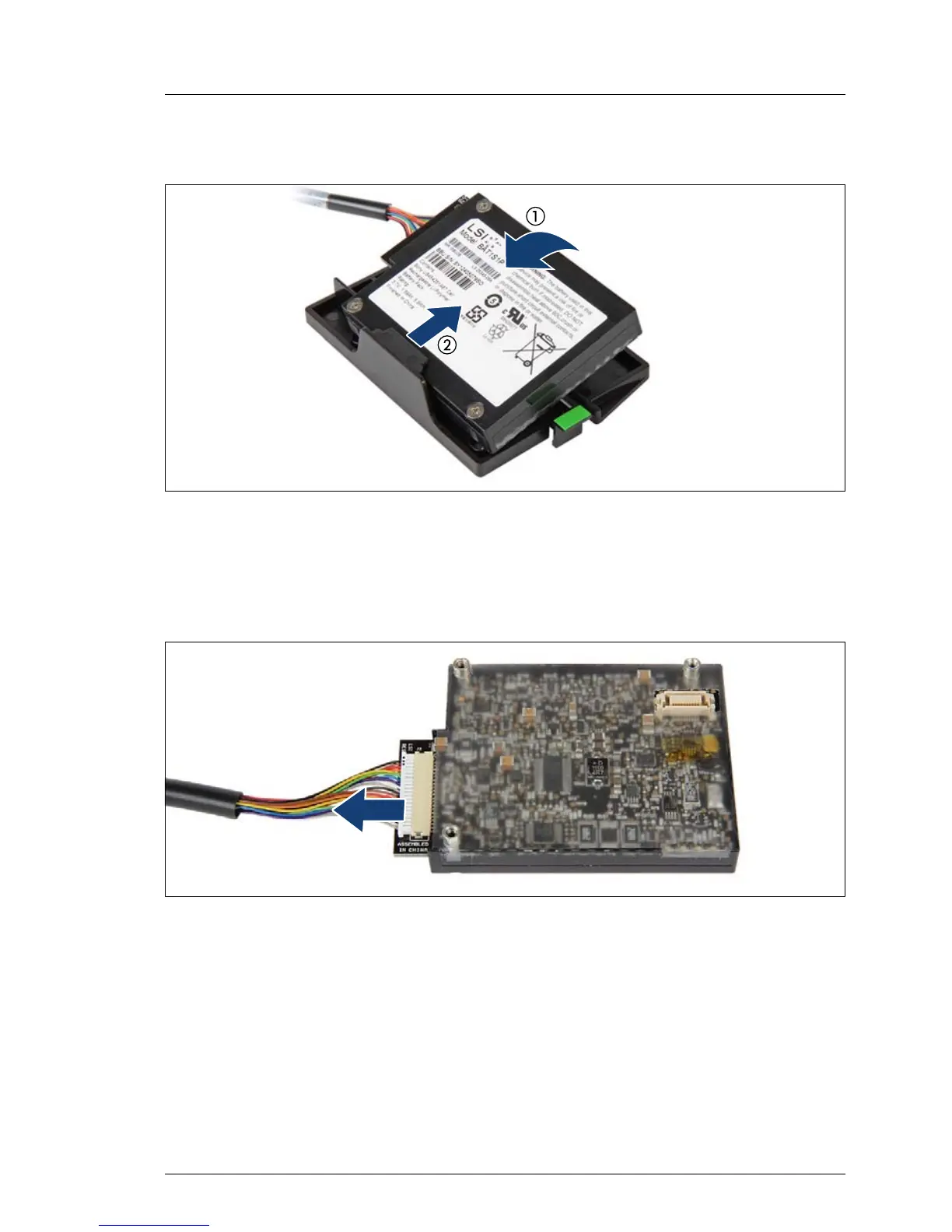

Figure 133: Removing the BBU from the holder

Ê Fold up the BBU (1) and at a slight angle remove it from the holder (2).

9.5.3.4 Disconnecting the BBU cable from the BBU

Figure 134: Disconnecting the BBU cable from the BBU

Ê Disconnect the BBU cable from the BBU.

9.5.3.5 Concluding steps

Ê "Reassembling" on page 52

Ê "Connecting the server to the mains" on page 55

Ê "Switching on the server" on page 57
