Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 135
Hard disk drives / solid state drives
7.2.9.4 Installing the new 10 x 2.5-inch HDD backplane

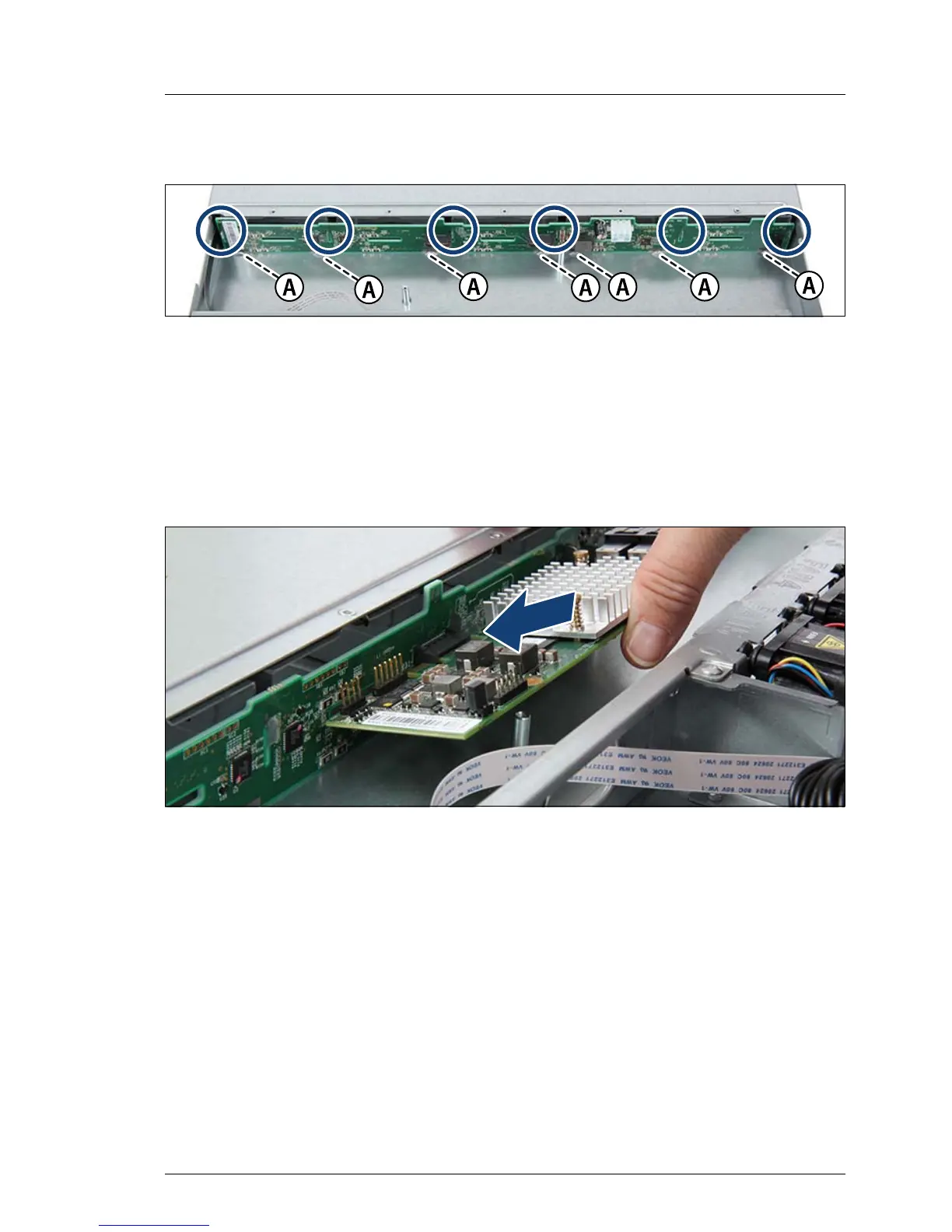

Figure 70: Installing the 10 x 2.5-inch HDD backplane
Ê Position the HDD backplane on the six hooks (see circles).
Ê Push the HDD backplane downward. Make sure that the lower cant of the
HDD backplane fits in the guides (A).
7.2.9.5 Installing the SAS expander board
Figure 71: Installing the SAS expander board (A)
Ê Insert the SAS expander board into the two connectors of the HDD
backplane.
V CAUTION!
Lift up the SAS expander board while inserting it in order to prevent
the components to be damaged by the stand-offs of the chassis.
