RX1330 M1 Upgrade and Maintenance Manual 55
Basic hardware procedures
4.5.3 Sliding the server into the rack

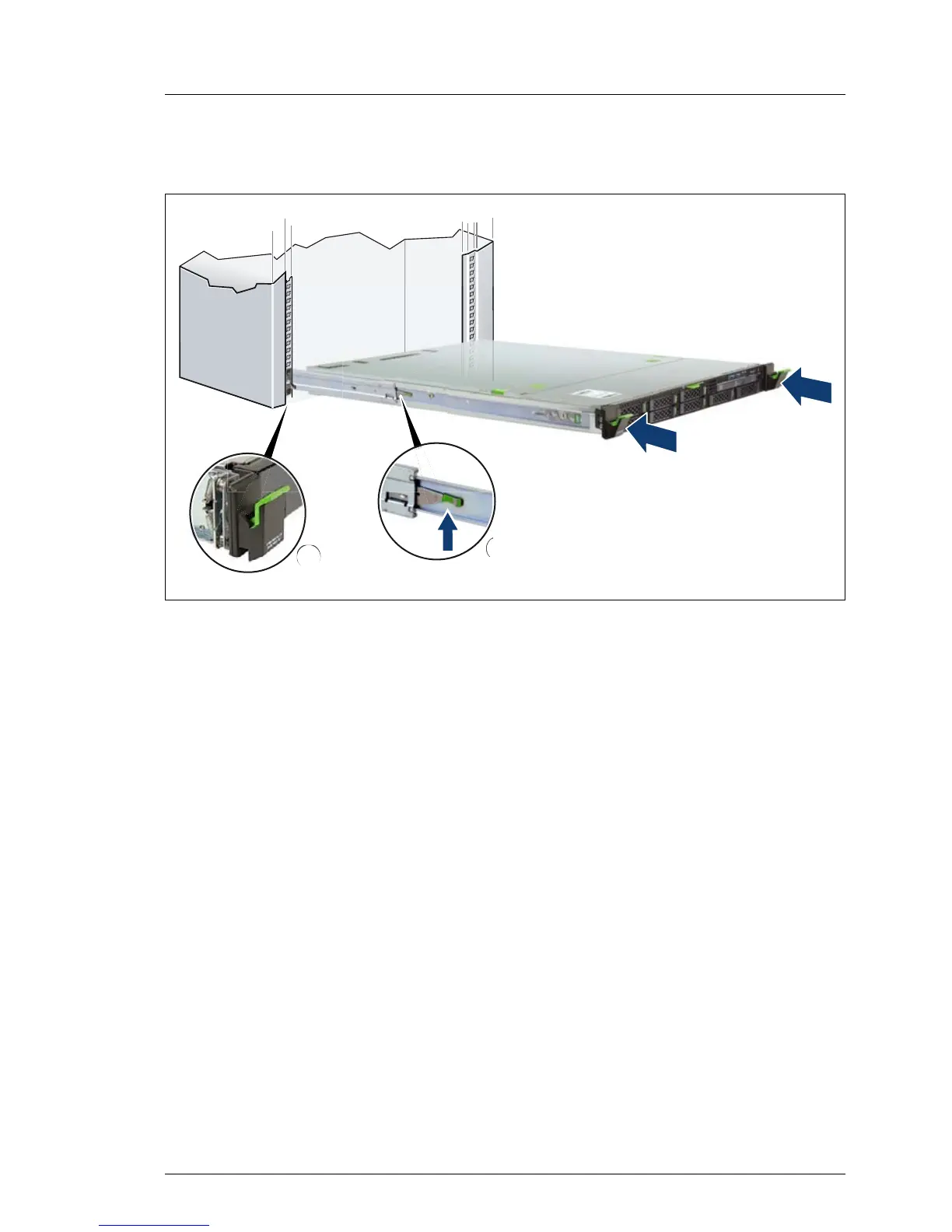

Figure 9: Sliding the server into the rack
Ê Release the locking mechanism of both rails (1).
Ê Push the server as far as it will go into the rack (2) until the quick-release
levers engage (3).
V CAUTION!
Be careful with your fingers. You can pinch them when the quick-
release levers change to the release position.
Ê Reconnect all cables except the power cord to the server rear.
4.6 Connecting the server to the mains
V CAUTION!
The server supports a mains voltage in the range of 100 V - 240 V. You
may only operate the server if its rated voltage range corresponds to the
local mains voltage.
햲
햴
햲
햲
햳
햳
햴
햴
햴
햴
햴
햴
햴
햴
햴
햴
햴
햴
햴
햴

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
