RX1330 M
1
Upgrade and Maintenance Manual
257
System board and comp
onents
14.3.2.2
Rem
oving the UFM

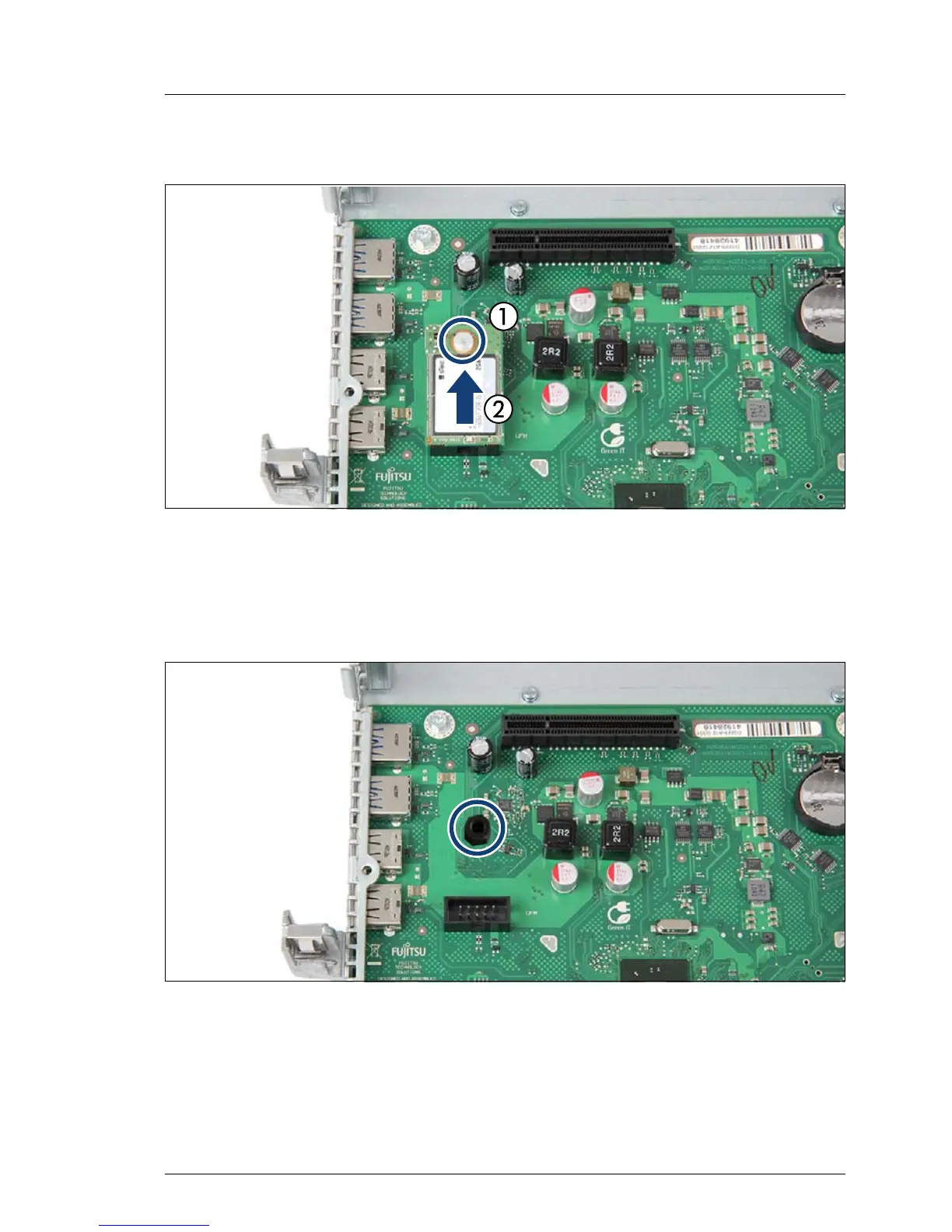

Figure 187: Removing the UFM
Ê
Remove the nylon screw of the UFM (1)
.
Ê
Di
sconnect and remove the UFM (2).
The UFM spacer remains on the system board.
Figure 188:
Remaining UFM
spacer
