Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 27
Before you start
2.3 Tools you need at hand
When preparing the maintenance task, ensure that all required tools are
available according to the overview below. You will find a list of required tools at
the beginning of each procedure.
Screw driver/
bit insert
Screw Usage Type
Phillips
PH2 / (+) No. 2
Slot brackets
M3 x 3.5 mm
(silver)
C26192-Y10-C151
Phillips
PH2 / (+) No. 2
SAS expander
board
M3 x 4.5 mm
(silver)
C26192-Y10-C67
Phillips
PH2 / (+) No. 2
System board,
front panel
M3 x 6 mm
(silver)
C26192-Y10-C68
Torx Plus 6 ODD latch
M2 x 4 mm
(black)
C26192-Y10-C166
Phillips
PH1 / (+) No. 1
Front VGA M3 x 3.5 mm
(silver)
C26192-Y10-C102
Special bit insert TPM screw
REM 3 x 15 mm
(black)
C26192-Y10-C176

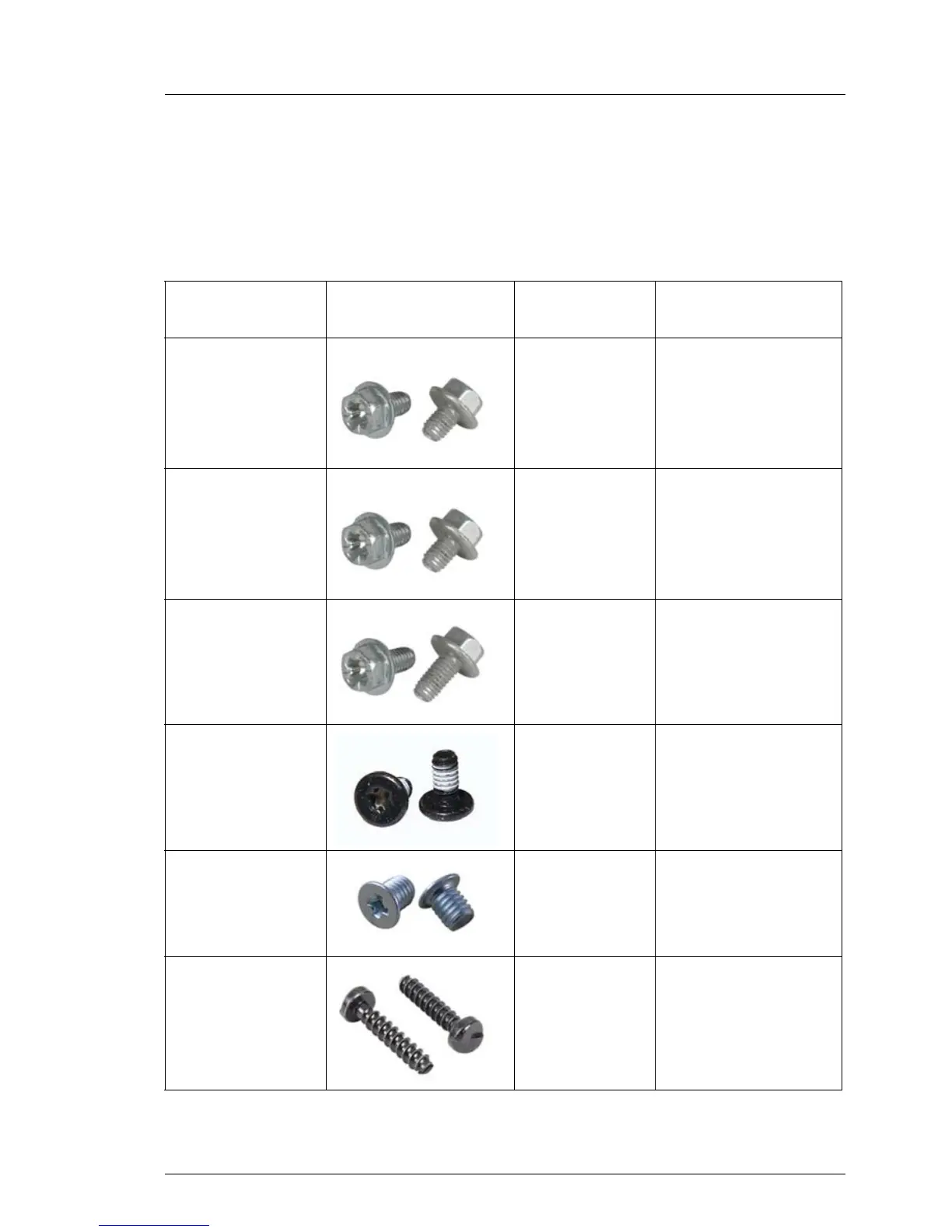

Table 2: List of used screws (not applicable for the Japanese market)

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
