158 Upgrade and Maintenance Manual RX1330 M1
Expansion cards and backup units
9.1 Basic information

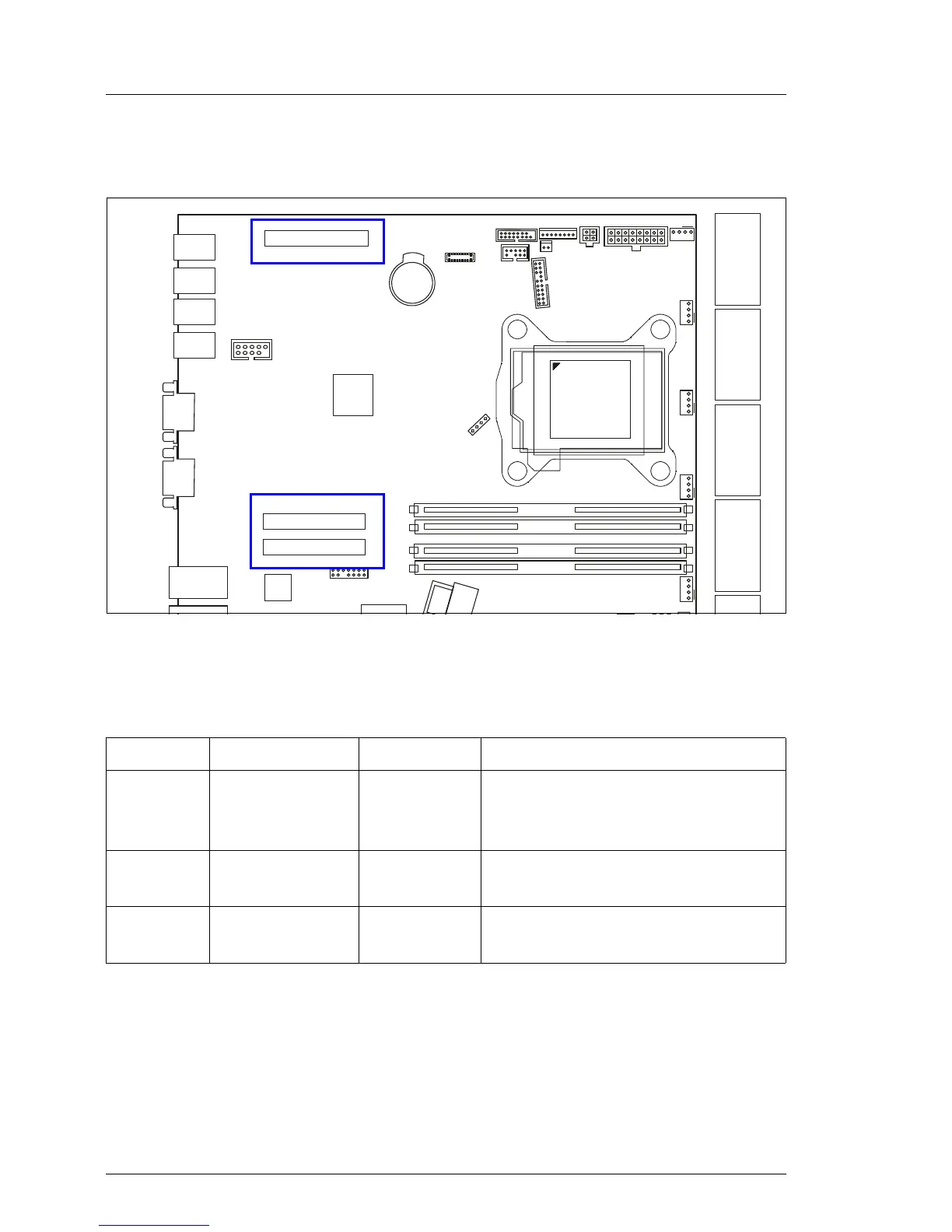

Figure 90: PCI slots for riser cards
9.1.1 Equipping the PCIe slots
I As an option a full height riser module can be installed (see section
"Upgrading to the full height riser module" on page 182). In this case the
slot 2 is not available and slot 3 can be equipped with a full height
expansion card.
PCI slot Riser module Type Description
Slot 1 Riser module 1 PCIe G3 x8
(x8 wired)
Low-profile slot, maximum length
175 mm; dedicated slot for
modular RAID controller
Slot 2 Riser module 2 PCIe G2 x8
(x4 wired)
Low-profile slot, maximum length
175 mm
Slot 3 Riser module 3 PCIe G3 x8
(x8 wired)
Low-profile slot, maximum length
175 mm
Fan2
Fan3
Fan4
Fan5
P30
PWR1
PWR2
Frontpanel
Intel
C226
Riser card (x4)
Riser card (x8)
CPU
Indicate
CSS
Battery
TPM
Riser card (x8)
Sh d
Standard
LAN
UFM
USB 2.0
USB 2.0
USB 3.0
USB 3.0
Slot3
Slot2
Slot1
MLC
DIMM2A
DIMM1A
DIMM2B
DIMM1B
External connectors
VGA
COM1
Intel
i210
HDD
ACTIVITY
Front
USB
FAN4
FAN5
FAN3
FAN2
FAN1
PWR3
PC98
FRONTPANEL

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
