Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

244 Upgrade and Maintenance Manual RX1330 M1
Front panel
13.3.2.2 Removing the front VGA board

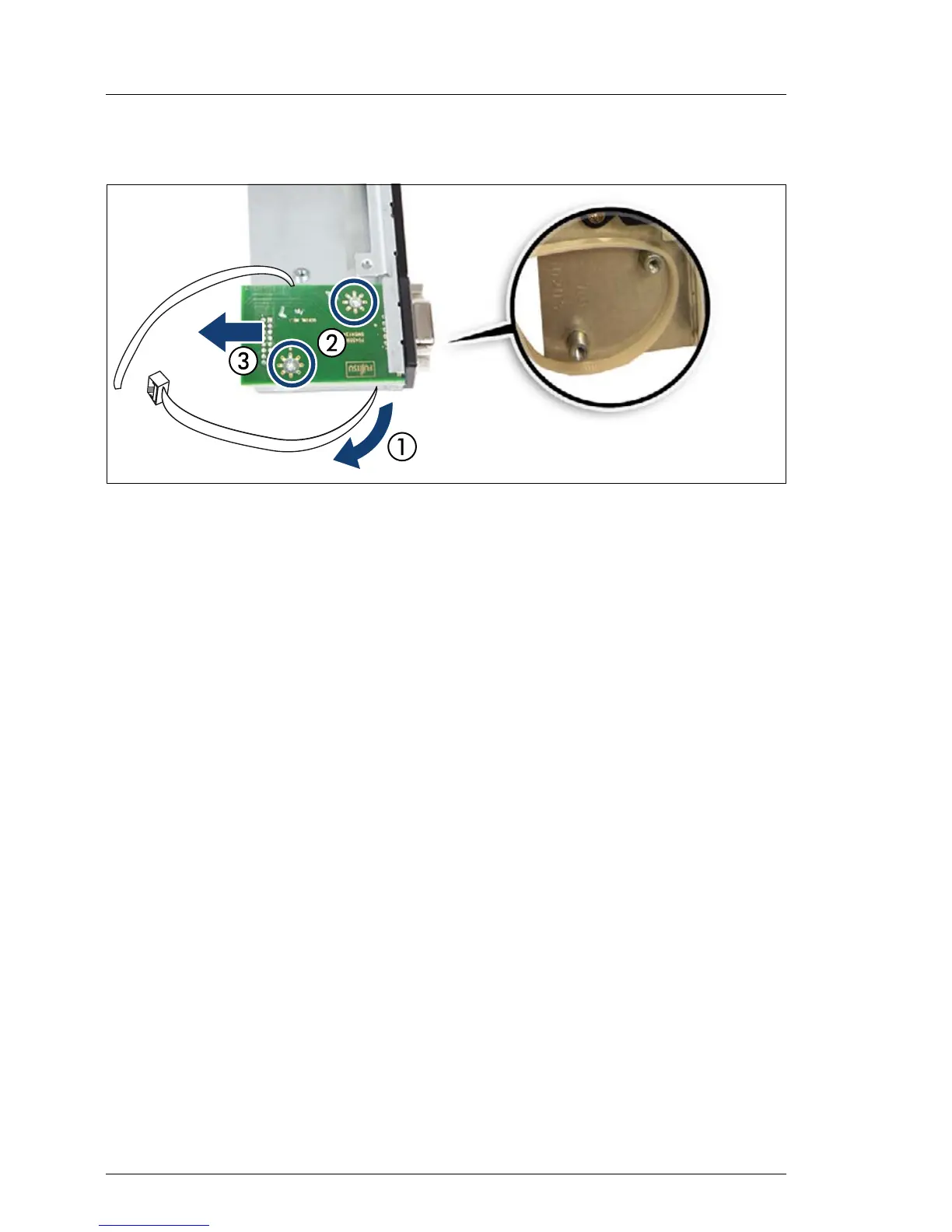

Figure 175: Removing the front VGA board
Ê If the VGA cable was secured with a cable tie, pull out the cable tie (1).
Ê Remove the two screws (2) and remove the front VGA board (3).
13.3.2.3 Installing the dummy cover
Ê Install the dummy cover (see figure 173).
13.3.2.4 Concluding steps
Ê "Installing the front panel module" on page 239
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
