RX1330 M1 Upgrade and Maintenance Manual 173
Expansion cards and backup units
9.4.2.3 Installing the slot cover

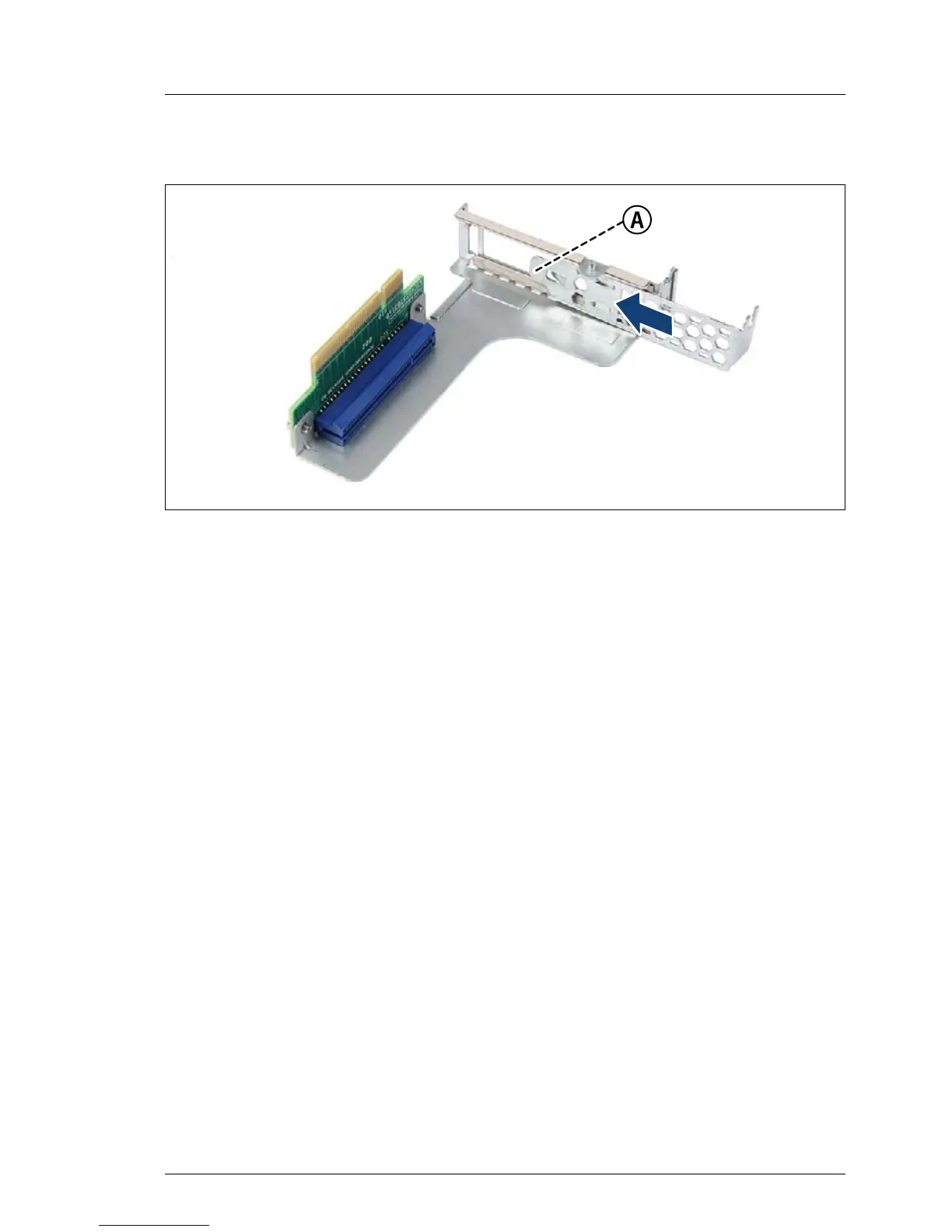

Figure 108: Installing the slot cover - example riser module 1
Ê Insert the slot cover. Make sure that the lug on the slot cover (A) clicks into
place in the corresponding hole.
9.4.2.4 Concluding steps
Ê Install the corresponding riser module as described in section "Installing a
riser module" on page 60.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
Ê "Resuming BitLocker functionality" on page 84

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
