Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

194 Upgrade and Maintenance Manual RX1330 M1
Expansion cards and backup units

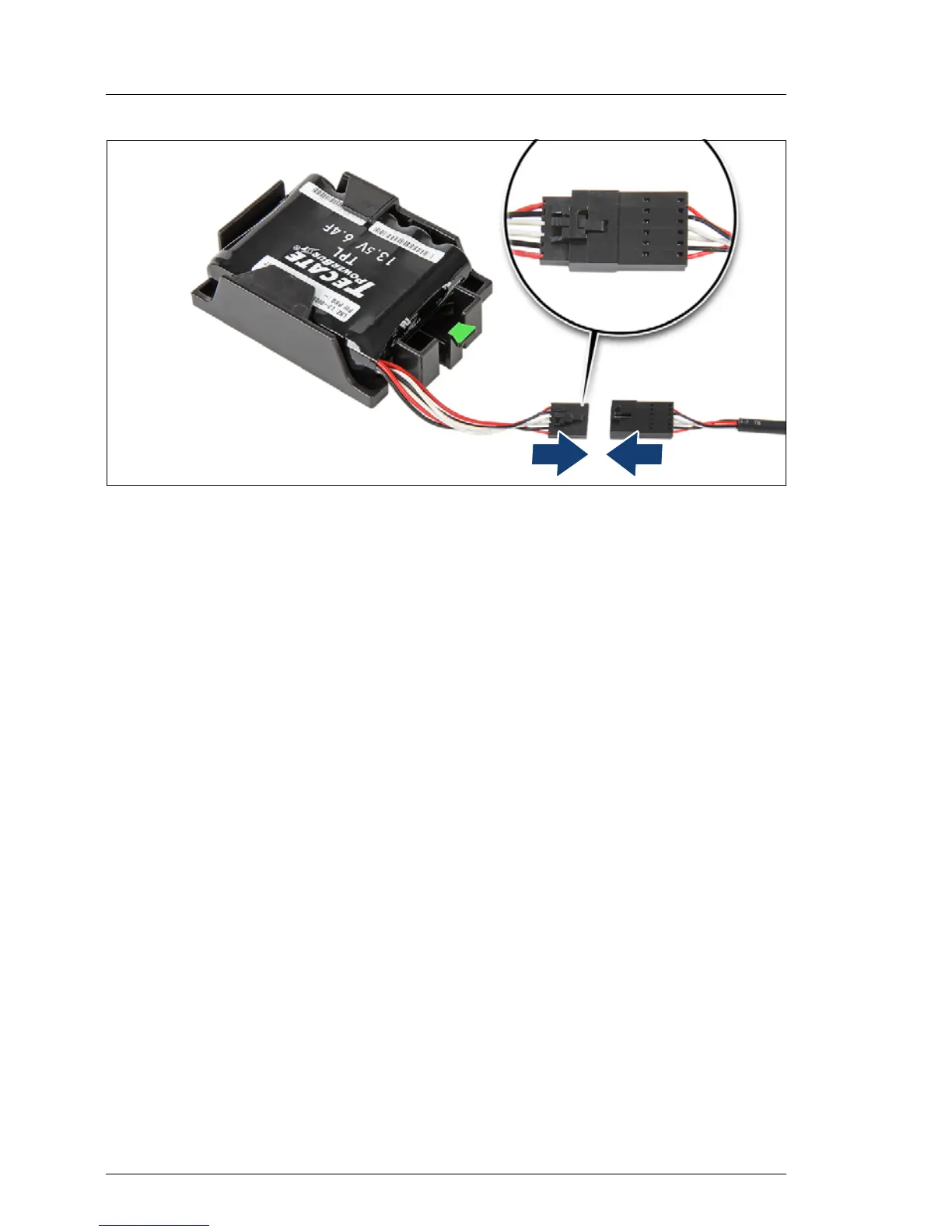

Figure 130: Connecting the FBU adapter cable to the FBU
Ê Connect the cable end on the FBU to the FBU adapter cable as shown.
9.5.2.3 Installing the FBU
Ê Install the FBU with the holder as described in section "Installing the BBU"
on page 189.
Ê If applicable, install the TFM as described in section "Installing the new TFM"
on page 180.
Ê Connect the FBU adapter cable to the TFM as described in section
"Installing the new TFM" on page 180.
Ê Install the RAID controller with the TFM as described in section "Installing an
expansion card" on page 170.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
