RX1330 M1 Upgrade and Maintenance Manual 47
Basic hardware procedures
Redundant power supply

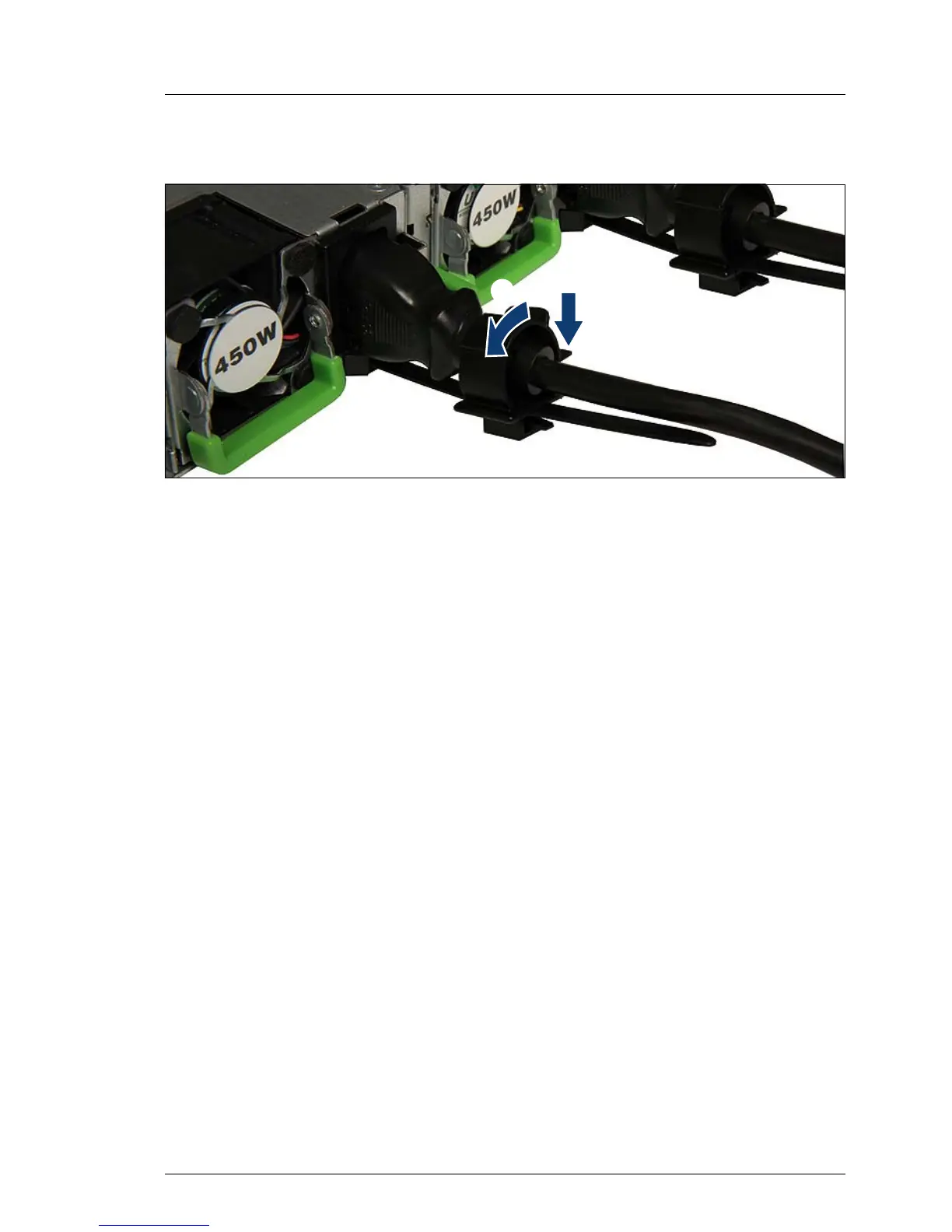

Figure 3: Unlocking the cable clamp of a power supply unit
Ê Press the cable clamp down until it disengages (1).
Ê Open the cable clamp (2).
Ê Disconnect the power cord from the power supply unit and remove it from
cable clamp.
4.4 Getting access to the component
V CAUTION!
● Only for non-hot plug components:
Before removing or attaching covers, turn off the server, all peripheral
devices, and any other connected devices. Also unplug all power
cords from the outlet. Failure to do so can cause electric shock.
● The top cover must be replaced as soon as possible for purposes of
cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires.
● For further safety information, please refer to chapter "Important
information" on page 31.
/
0

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
