Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

128 Upgrade and Maintenance Manual RX1330 M1
Hard disk drives / solid state drives
Right side 4 x 2.5-inch HDD backplane (A3C40157828)

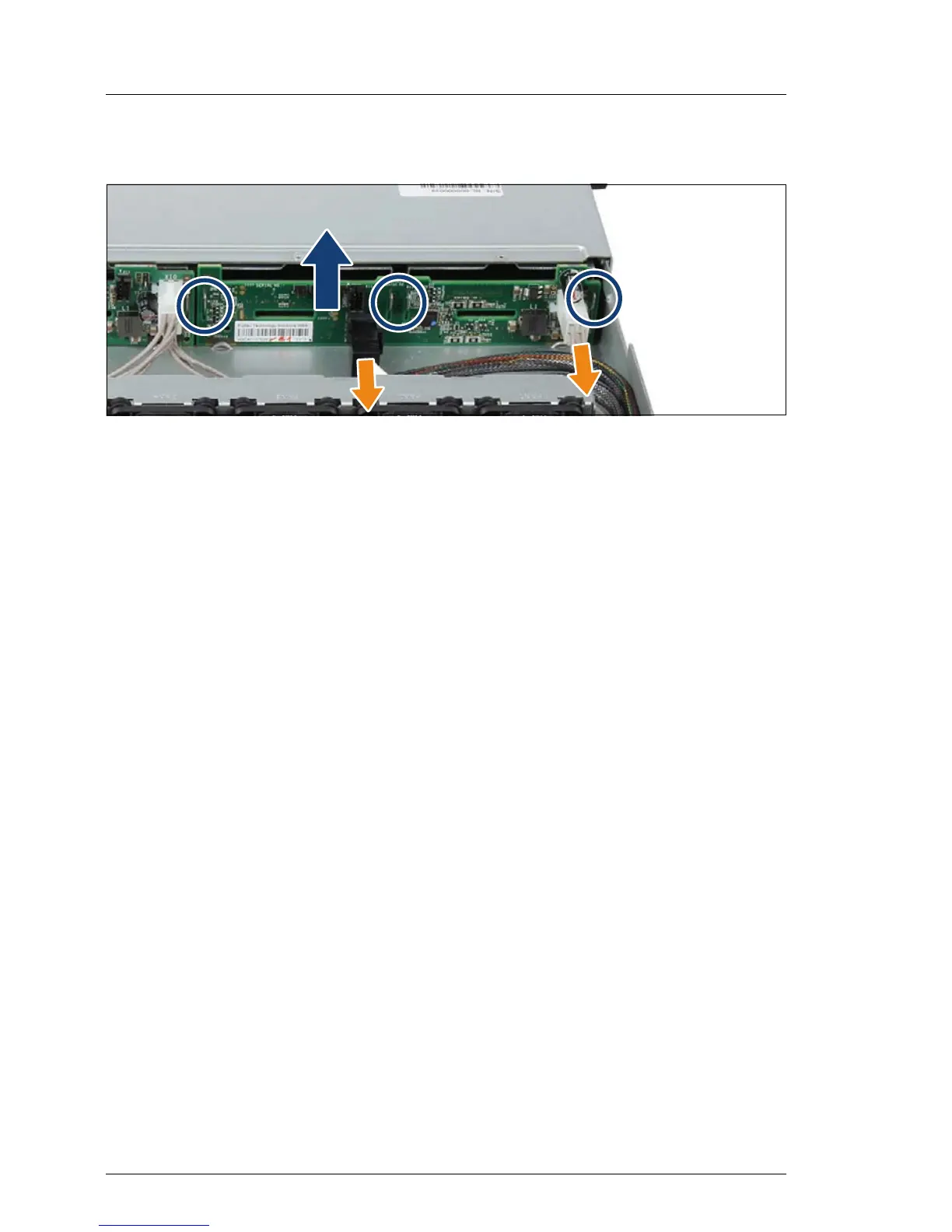

Figure 61: Removing the 4 x 2.5-inch HDD backplane
Ê Disconnect all cables from the HDD backplane (see orange arrows).
I If applicable, remove the OOB cable from the HDD backplane, too.
Ê Pull the HDD backplane upward until the four hooks disengage (see circles).
Ê Take out the HDD backplane.
7.2.8.3 Installing the new 4 x 2.5-inch HDD backplane
I For configurations with up to four 2.5-inch HDDs/SSDs, please refer to:
section "Left side 4 x 2.5-inch HDD backplane (A3C40157852)" on
page 129.
For configurations with up to eight 2.5-inch HDDs/SSDs, please refer to:
section "Left side 4 x 2.5-inch HDD backplane (A3C40157852)" on
page 129 or "Right side 4 x 2.5-inch HDD backplane (A3C40157828)" on
page 131.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
