RX1330 M1 Upgrade and Maintenance Manual 127
Hard disk drives / solid state drives
Left side 4 x 2.5-inch HDD backplane (A3C40157852)

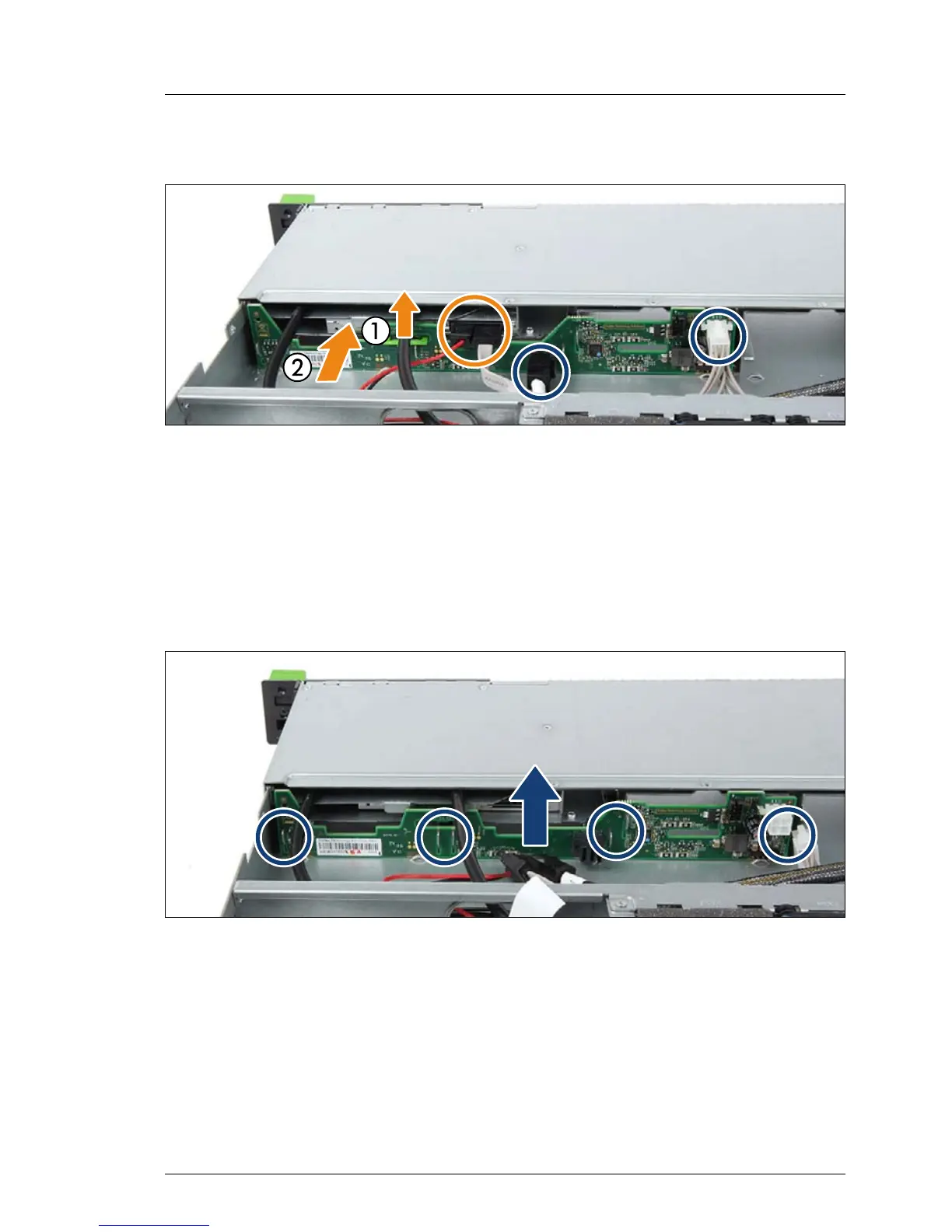

Figure 59: Releasing the ODD latch and disconnecting the cables
Ê If applicable, disconnect both cables from the ODD (see orange circle).
Ê If applicable, pull the ODD latch upward (1) until it disengages and push the
ODD somewhat in direction of the front side (2).
Ê Disconnect all cables from the HDD backplane (see blue circles).
I If applicable, remove the OOB cable from the HDD backplane, too.
Figure 60: Removing the 4 x 2.5-inch HDD backplane
Ê Pull the HDD backplane upward until the six hooks disengage (see circles).
Ê Take out the HDD backplane.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
