Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 117
Hard disk drives / solid state drives
7.2 2.5-inch HDD/SSD configurations
7.2.1 Equipping the 2.5-inch HDD/SSD bays
– Solid state drives (SSDs) are always equipped before installing hard disk
drives.
– If only one HDD/SSD module is installed, the HDD/SSD module will be
installed in position 1. Free bays must be equipped with a dummy module.
7.2.2 Configuration with up to four HDD/SSD modules
Mounting order

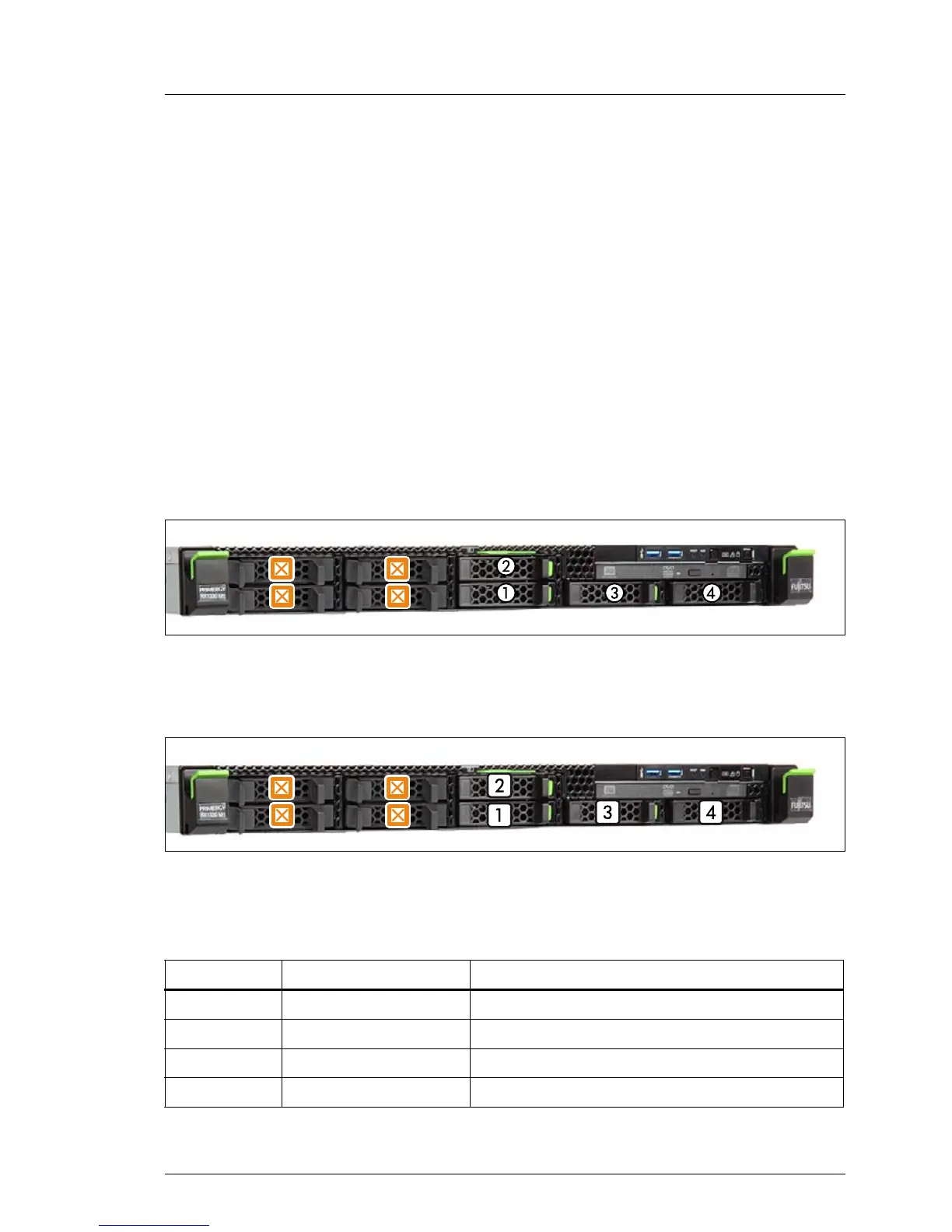

Figure 48: Mounting order with up to four 2.5-inch HDDs/SSDs
HDD/SSD naming scheme
Figure 49: Naming scheme with up to four 2.5-inch HDDs/SSDs
I The HDD/SSD numbering as listed in the ServerView RAID Manager
differs from the HDD mounting order:
Position Logical drive number ServerView RAID Manager display name
[1] 0 HDD vendor name (0)
[2] 1 HDD vendor name (1)
[3] 2 HDD vendor name (2)
[4] 3 HDD vendor name (3)

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
