Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

258 Upgrade and Maintenance Manual RX1330 M1
System board and components
V CAUTION!
UFM contains customer information (e.g. IP address, License etc.). After
replacing the UFM, you must pass the defective UFM to the customer,
and ask for disposal. If the disposal of the defective UFM is requested by
the customer, you break it according to the following procedure, and
dispose it.

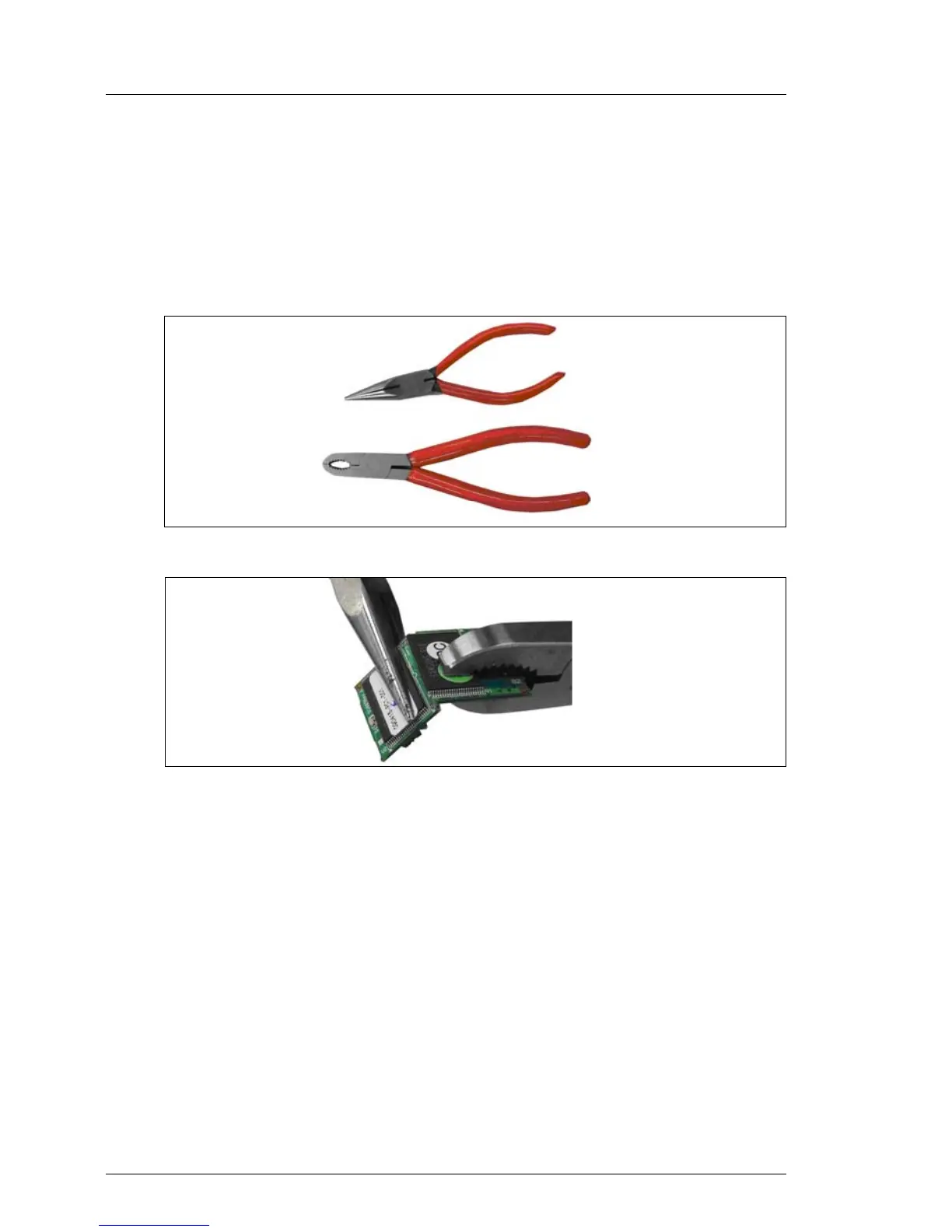

Figure 189: Tools for breaking the UFM
Figure 190: UFM breaking method
Ê Use a long nose pliers and a combination pliers to break the UFM in
half as shown in the figure.
14.3.2.3 Concluding steps
Ê Install the riser module 3 as described in section "Installing a riser module"
on page 60.
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Enabling SVOM boot watchdog functionality" on page 78

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
