Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 161
Expansion cards and backup units
9.2 Handling slot brackets
9.2.1 Installing a slot bracket
I Use the low profile bracket perforated for the ModularRAID controllers
based on LSI MegaRAID.

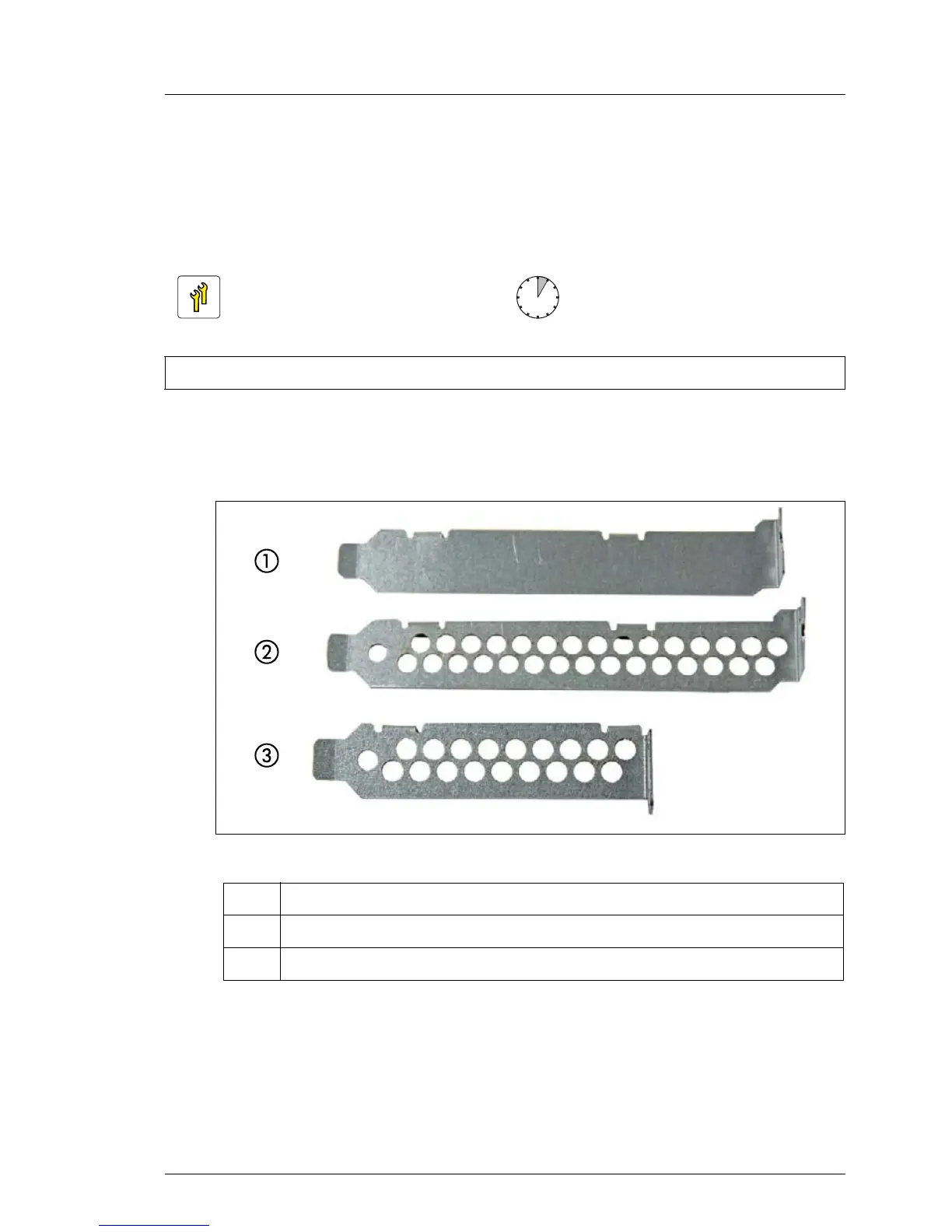

Figure 92: Perforated and non-perforated slot brackets
Installing the slot bracket
Ê Place the controller on the mounting tabs on the slot bracket.
Ê Fasten the slot bracket to the controller with two M3 x 4.5 mm screws.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
1 Full height bracket non-perforated
2 Full height bracket perforated
3 Low profile bracket perforated

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
