140 Upgrade and Maintenance Manual RX1330 M1
Hard disk drives / solid state drives
Ê Connect the SAS cables:
The shorter SAS cable connected to HDD backplane (A3C40157828) to
connector "MLC1" of the dual-channel RAID controller (1)
The longer SAS cable connected to HDD backplane (A3C40157852) to
connector "MLC2" of the dual-channel RAID controller (2)

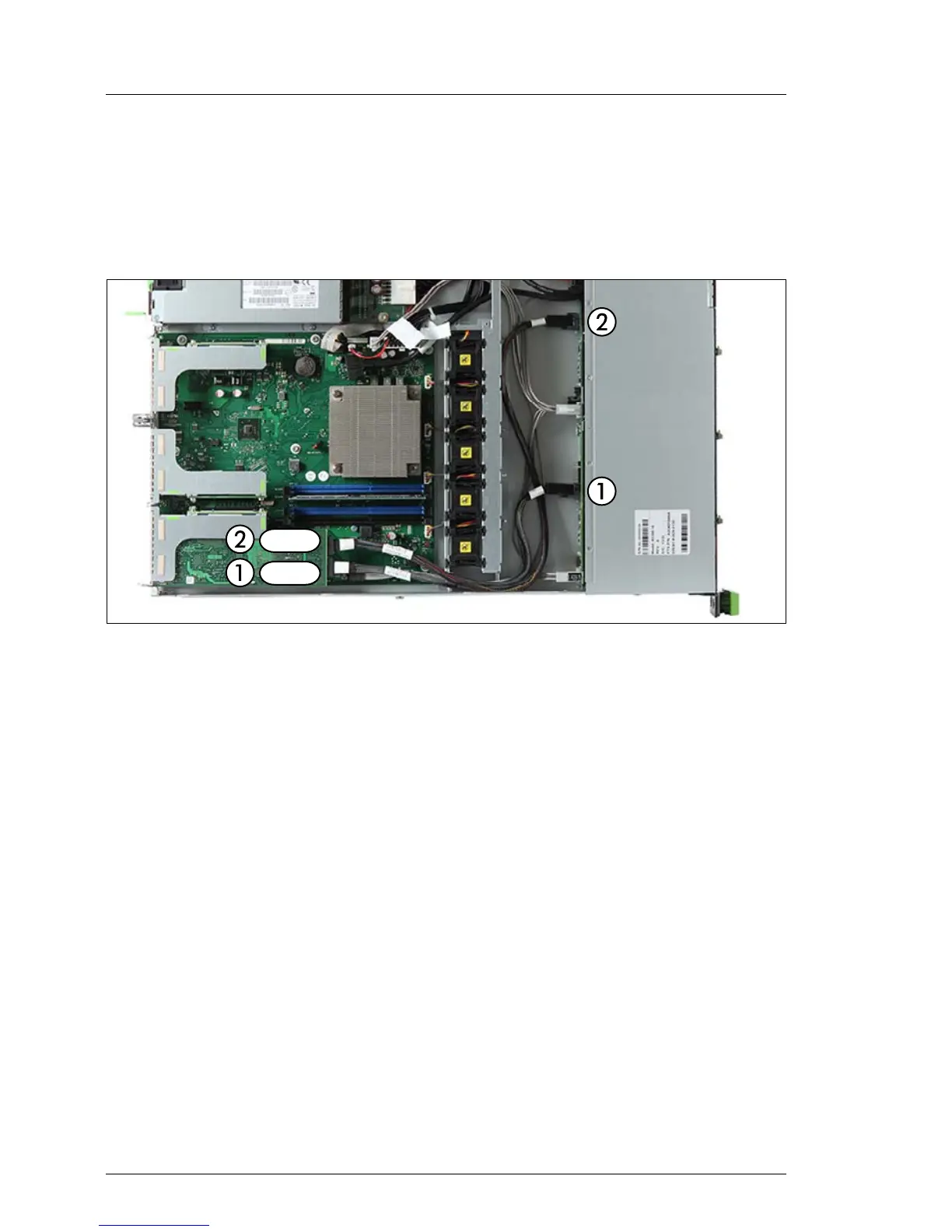

Figure 75: Routing SAS cables
Ê Route the SAS cables as shown in the figure above.
7.2.11.3 Installing additional HDD/SSD modules
Ê Remove the dummy locks as described in section "Removing a 2.5-inch
HDD/SSD dummy module" on page 120.
Ê Move the HDD/SSD modules installed in the former HDD bays 1 to 4 (see
figure 48) to the new HDD bays 1 to 4 (see figure 50).
Ê Insert additional HDD/SSD modules as described in section "Installing 2.5-
inch HDD/SSD modules" on page 120.
7.2.11.4 Concluding steps
Ê "Reassembling" on page 52
Ê "Connecting the server to the mains" on page 55
Ê "Switching on the server" on page 57
Ê "Performing a RAID array rebuild" on page 85
MLC 2
MLC 1

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
