Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

170 Upgrade and Maintenance Manual RX1330 M1
Expansion cards and backup units
9.4 Expansion cards and riser cards
9.4.1 Installing an expansion card
9.4.1.1 Preliminary steps
Ê "Disabling SVOM boot watchdog functionality" on page 64
Ê "Suspending BitLocker functionality" on page 63
Ê "Shutting down the server" on page 45
Ê "Disconnecting the server from the mains" on page 46
Ê "Getting access to the component" on page 47
Ê Remove the corresponding riser module as described in section "Removing
a riser module" on page 58.
9.4.1.2 Removing the slot cover

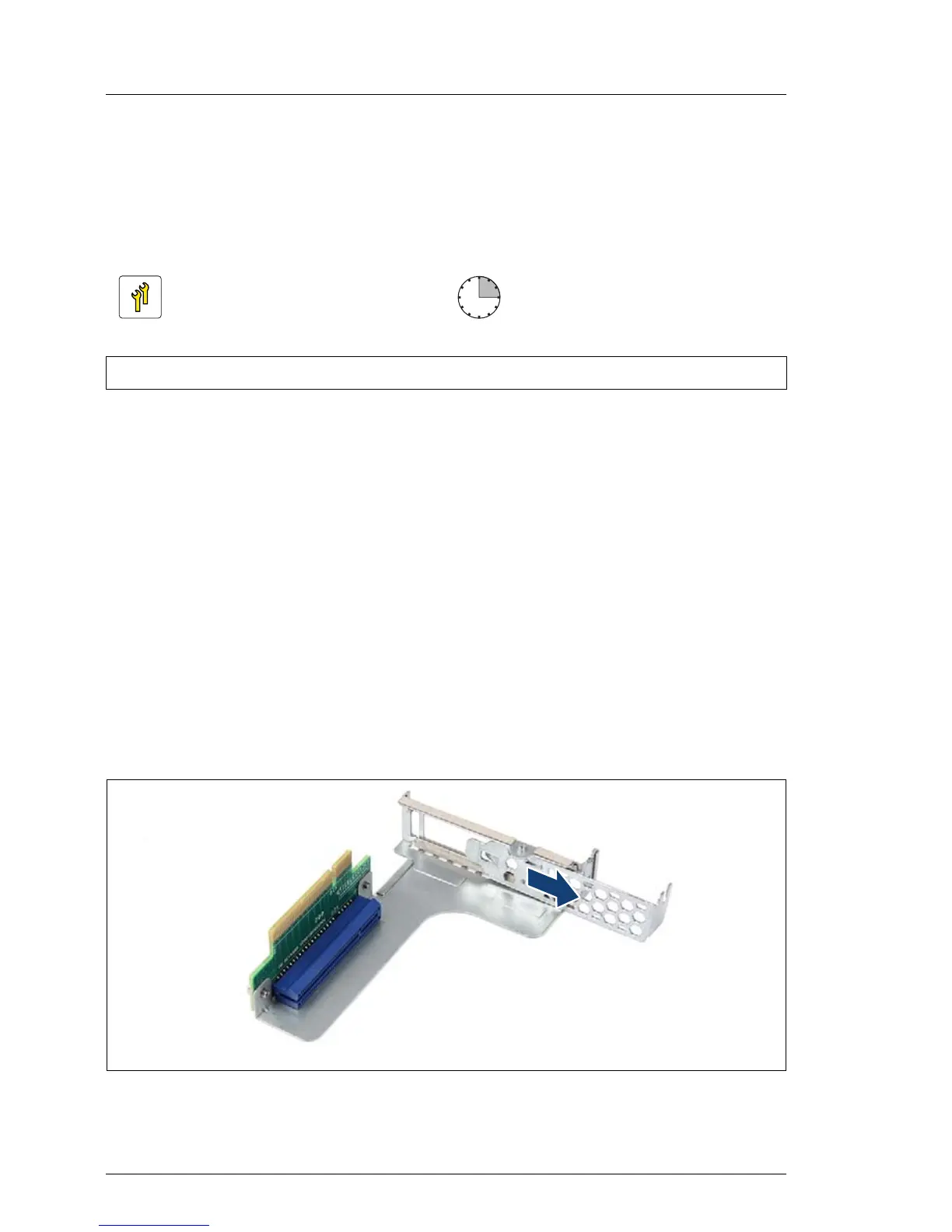

Figure 105: Removing the slot cover - example riser module 1
Ê Remove the slot cover.
Upgrade and Repair Unit
(URU)
Hardware: 10 minutes
Software: 5 minutes
Tools: tool-less

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
