Fujitsu PRIMERGY RX1330 M1 Upgrade And Maintenance Manual

RX1330 M1 Upgrade and Maintenance Manual 169
Expansion cards and backup units

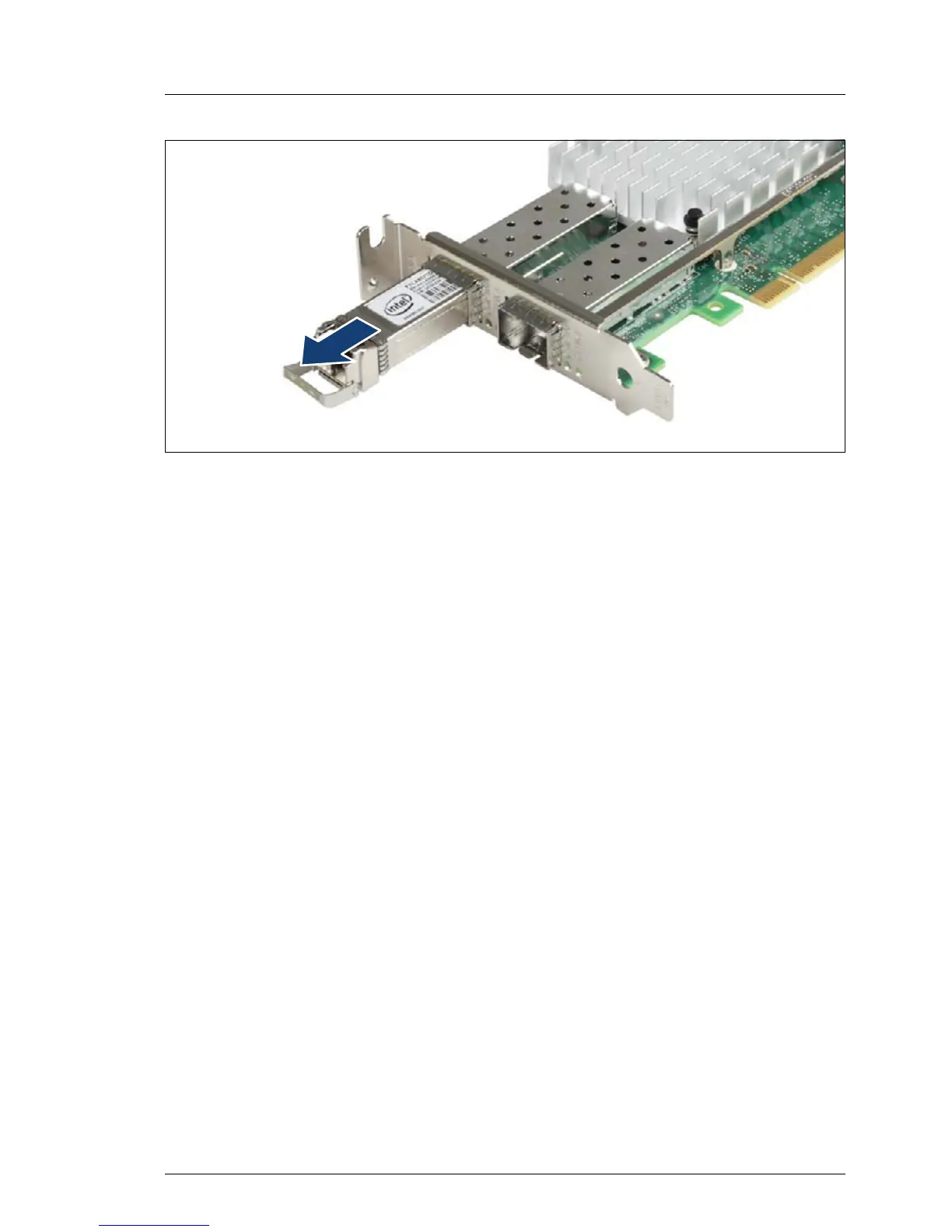

Figure 104: Removing the SFP+ transceiver module
Ê Pull the SFP+ transceiver module out of its socket connector.
Ê Attach the protective optical port plug to the transceiver optical bores.
I Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
